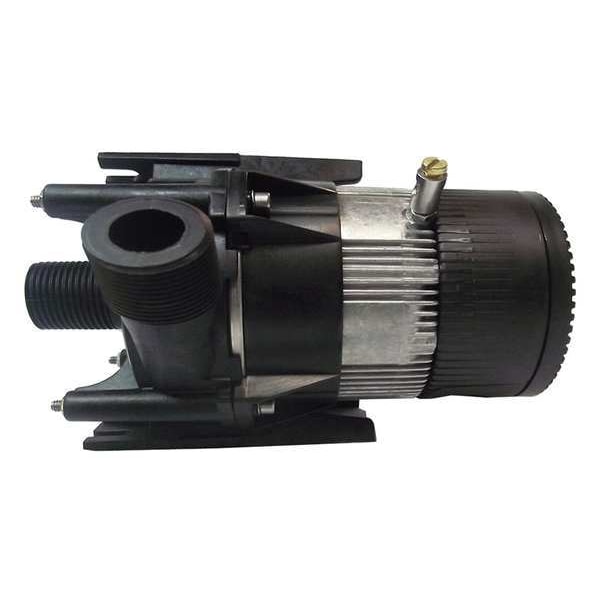

1/25 HP Noryl/Aluminum Centrifugal Pump 115V 3/4" HB

  • Mfr # E10-NSHNDNN1W-02
  • Zoro # G7927053
product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

HP
1/25 hp
Housing Material
Aluminum, Noryl
Phase
Single
Voltage
115V
Max. GPM @ Head
12.2 gpm @ 1 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E10-NSHNDNN1W-02
Zoro #
G7927053
UPC #
-
Country of Origin
Hungary

Dimensions

Length
6 in
Manufacturers Warranty Length
1 yr
Width
4 5/16 in
Max. Dia. Solids
3/4 in
Height
4 7/8 in
Discharge Pipe Size
3/4 in
Overall Length
6 in
Overall Width
4.3 in
Overall Height
4.8 in
Intake Pipe Size
3/4 in
Cord Length
4 ft
Solid Diameter (Maximum)
0.75 in
Motor Frame Size
56J
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Manufacturer Warranty Length
1 yr

Details

HP
1/25 hp
Item
Centrifugal Pump
Housing Material
Aluminum, Noryl
Phase
Single
Voltage
115V
Max. GPM @ Head
12.2 gpm @ 1 ft
Max. Head
18 7/10 ft
Best Efficiency GPM @ Head
11.00 gpm @ 3.28 ft
Inlet
3/4 in HB
Outlet
3/4 in HB
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Temp.
140 Degrees F
Port Rotation
CCW
NEMA/IEC Frame
56
Max. Liquid Temp.
140 Degrees F
Impeller Type
Semi Open
GPM of Water @ 5 Ft. of Head
10.5
Inlet Pressure
75 psi
GPM of Water @ 1 Ft. of Head
12.2
Max. Pressure
29 psi
Seal Material
EPDM
Shaft Material
Stainless Steel
Min. GPM @ Head
1 gpm @ 18.5 ft
Duty
Continuous
GPM of Water @ 15 Ft. of Head
5
Volute Material
Noryl
GPM of Water @ 3 Ft. of Head
11.25
Motor Type
Spherical
Cord
4 ft
Hz
50/60 Hz
GPM of Water @ 9 Ft. of Head
8.5
Bearing Type
Ceramic
Max. Case Pressure
200 psi
GPM of Water @ 7 Ft. of Head
9.5
Motor RPM
3,100 RPM
Application
Water Circulation/Liquid transfer
Wetted Materials
316 Stainless Steel, CarboN/Allumina Ceramic, EPDM, Noryl, Viton
Service Factor
1
Impeller Material
316 Stainless Steel/Nylon
Amps
0.52
Max. Fluid Viscosity
30 cps
Best Efficiency Range GPM @ Head
6.60 to 12.40 gpm @ 1 to 12.47 ft
Screw Material
Stainless Steel
GPM of Water @ 10 Ft. of Head
8.2
Includes
Power Cord
Seal Type
O-Ring
GPM of Water @ 2 Ft. of Head
11.8
Drain Plug
No
Shut Off Pressure (Maximum)
29 psi
Compatible Motor Frame
56J NEMA
Viscosity (Maximum)
30 cps
Flow Rate @ 1 ft of Head (Maximum)
12.2 gpm
Duty Cycle
Continuous
Case Pressure (Maximum)
200 psi
Flow Rate @ 5 ft of Head (Maximum)
10.5 gpm
Feet of Head (Maximum)
18.7 ft
Wetted Material
316 Stainless Steel, Carbon, EPDM, Noryl, Viton
Ambient Temperature (Maximum)
140 Degrees F
Impeller Design
Semi-Open
Flow Rate @ 10 ft of Head (Maximum)
8.2 gpm
Best Efficiency Head
3.28 ft
Horsepower (Maximum)
1/25 hp
Nameplate Voltage
115V AC
Motor Speed (Maximum)
3,100 RPM
Flow Rate @ 15 ft of Head (Maximum)
5 gpm
Current
0.52 A
Frequency
60 Hz
Media Temperature (Maximum)
140 Degrees F
Flow Rate (Maximum)
12.2 gpm
Best Efficiency Flow
11 gpm
Flow Rate (Minimum)
1 gpm
Shut Off Pressure - Maximum
29 psi
Horsepower
1/25 hp
Case Pressure - Maximum
200 psi
Shaft Seal Material
EPDM
Motor Speed - Maximum
3,100 RPM
Flow Rate @ 10 ft of Head - Maximum
8.2 gpm
Ambient Temperature - Maximum
140 Degrees F
Media Temperature - Maximum
140 Degrees F
Pump Housing Material
Aluminum/Noryl
Discharge Standard
Barbed
Inlet Standard
Barbed

Description

Centrifugal Pump, Phase Single, Pump Housing Material Aluminum/Noryl, Horsepower 1/25 hp, Nameplate Voltage 115V AC, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 5 ft of Head (Maximum) 10.5 gpm, Flow Rate @ 10 ft of Head (Maximum) 8.2 gpm, Flow Rate @ 15 ft of Head (Maximum) 5 gpm, Seal Material EPDM, Cord Length 4 ft, Best Efficiency Head 3.28 ft
