Shop GOULDS WATER TECHNOLOGY

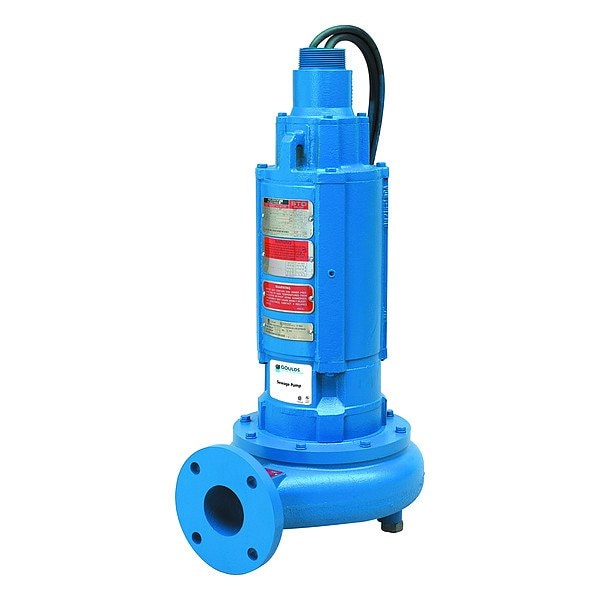

SewageEjectorPump, 25ft, 5hp, Three, 230VAC

  • Mfr # 3SDX12J3GC

  • Zoro # G315487708


product price:  $9,054.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

Switch Actuation
No Switch Included
Impeller Material
Cast Iron
Thermal Protection
Auto
Cord Length
25 ft
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3SDX12J3GC
Zoro #
G315487708
UPC #
697666221841
Country of Origin
United States

Dimensions

Cord Length
25 ft
Manufacturers Warranty Length
1 yr
Solids Diameter - Maximum
2 1/2 in
Discharge Diameter
3 in
Width at Widest Point
15 7/8 in
Body Diameter
12 3/4 in
Overall Height
31 7/8 in

Details

Switch Actuation
No Switch Included
Impeller Material
Cast Iron
Thermal Protection
Auto
Phase
Three
NEC Cord Designation
SOOW, SOW
Item
Sewage Ejector Pump
Rotation Speed - Maximum
1,750 RPM
Power Source
Corded Electric
Frequency
60 Hz
Discharge Standard
Flanged
Discharge Orientation
Horizontal
Motor Housing Material
Cast Iron
Shaft Seal Material
Ceramic/Nitrile Rubber
Discharge Gender
Female
Liquid Temperature - Maximum
104 Degrees F
Series
3SDX
Current
13.9 A
Switch Electrical Connection
No Switch Included
Standards
CSA 22.2 108-M89, CSA 22.2 145-M1986, UL 1207, UL 674, UL 778
For Media Type
Clear Water, Sewage Water
Requires Control Panel
Control Panel Required
Shaft Seal Type
Single Mechanical
Feet of Head - Maximum
67 ft
Flow Rate @ 10 ft of Head
350 gpm
Rated Voltage
230V AC
Duty Cycle
Continuous
Motor Design
Three-Phase
Application
Dewatering, Waste Removal
Installation
Submersible
Volute Material
Cast Iron
Impeller Design
Semi-Open
Hazardous Location Class
Class I Division 1 Groups C, D
Horsepower
5 hp
Power Source - TS Only
Corded Electric

Description

Sewage Ejector Pump, Rated Voltage 230V AC, Impeller Material Cast Iron, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Width at Widest Point 15 7/8 in, Overall Height 31 7/8 in, Cord Length 25 ft, Duty Cycle Continuous, Thermal Protection Auto, NEC Cord Designation SOOW, SOW, Manufacturers Warranty Length 1 yr
