Shop GPI

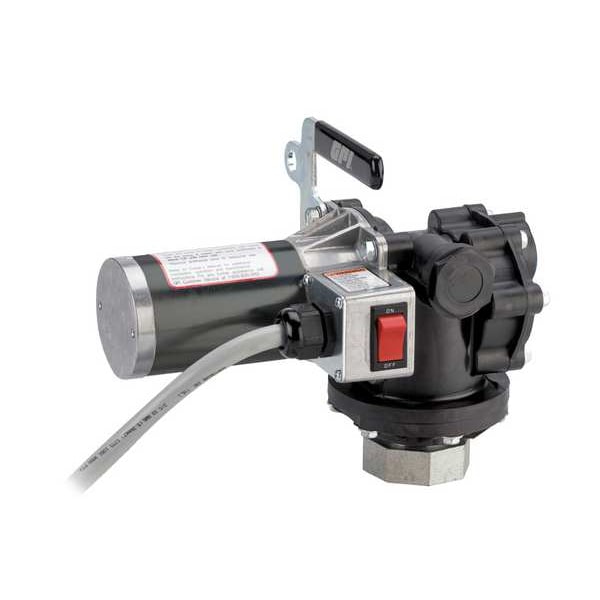

ElectricDrumPump, Polyethylene, 12VDC

  • Mfr # P-200H-2UR

  • Zoro # G3173475

product price:
$
892.99
/ea
Free Shipping & Returns

Key Features

For Use With
GPI 118000-2, P-200H-2UR
Includes
15 ft Power Cord
Max. Viscosity
450 cps
Motor Type
Electric DC
Power Source
Corded Electric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P-200H-2UR
Zoro #
G3173475
UPC #
031401118001
Country of Origin
United States
For Use With
GPI 118000-2, P-200H-2UR
Item
Electric Drum Pump
Includes
15 ft Power Cord
Max. Viscosity
450 cps
Motor Type
Electric DC
Power Source
Corded Electric
Wetted Materials
316 Stainless Steel, PBT Polyester
Voltage
12VDC
Motor Enclosure
TENV
Metered
No
Max. Flow GPM
8-12 gpm
Motor RPM
3,500 RPM
Standards
CSA
HP
1/3
Max. Head
18 ft.
Gasket Material
Fluorocarbon
Max. Temp.
120 Degrees F
Max. Pressure
6 psi
Type
Agricultural Chemical
Suction Tube Type
Plastic Adjustable
RPM
3500
Housing Material
Polyethylene
Adapter Material
Aluminum
Agency Compliance
CSA
Max. GPM for Water
8
Adapter Type
Spin Collar
Max. Liquid Temp.
120 Degrees F
Application
Agricultural Chemicals Transfer
Pump Body Material
Polyethylene
Max. GPM for Oil
8
DEF Compatible
No
GPM
8
Max. Oil Flow
8 gpm
Housing Material - Pumps
Polyethylene
Runs Dry
Yes
Max. Fluid Temp.
120 Degrees F
Includes Bung Adapter
Yes
Self-Priming
Yes
Features
12 V(dc), 15 ft (4.6 m) Power code, 2 in NPT Union Ring, 8 GPM (30 L/min), Chemical transfer pump, corrosion resistance., GPI 118000-2, Lightweight, Molded plastic, P-200H-2UR
Diesel Exhaust Fluid Compatible
No
For Media Type
Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid
Includes Nozzle
No
Max. Head Pressure
16 psi
Includes Discharge Hose
No
Min. Fluid Temp.
-20 Degrees F
Pump Connection Type
NPT
Discharge Connection Type
NPT
Variable Speed
No
Discharge Tube Outlet OD
1 in
Motor HP
1/3 hp
Pump Connection ID
1 in
Food Grade
No
Pump Connection OD
1 in
Max. Head - Pumps
18 ft
Includes Suction Tube
Yes
Compatible Chemicals
Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Pesticides, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid
Duty Cycle
Intermittent
Series
Chemical
Max. Flow Rate
8 gpm
Seal Material
Nitrile
For Container Type
Drum, Tote
Discharge Tube Outlet ID
1 in
Number of Phases
1
Full Load Amps
15.0 A
Not Recommended Chemicals
Rated Voltage
12 V DC
Explosion Proof
No
Gear Lube
NT
Grease
NT
Max. Outlet Pressure
6 psi
Motor Speed
3,500 RPM
Full Load Current
15 A
Includes Spout
Yes
Maximum Head
18 ft
Adapter Connection Standard
MNPT
Motor Horsepower
1/3 hp
Maximum Viscosity
450 cps
Maximum Flow Rate
8 gpm
Includes Follower Plate
No Follower Plate Included
Maximum Fluid Temperature
120 Degrees F
Static Protection
Not Groundable
Maximum Head Pressure
16 psi
Maximum Oil Flow
8 gpm
Hazardous Location Class
Not Rated
Meter Type Included
No Meter Included
Chemical Compatibility
Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Petroleum Oil, Synthetic Oil, Motor Oil, Pesticides, Stoddard Solvent, Windshield Washer Fluid
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Minimum Fluid Temperature
-20 Degrees F
Maximum Outlet Pressure
6 psi
Nozzle Operation
Manual
Phase
Single
Pump Technology
Gear
Mount Type
Bung
Wetted Material
316 Stainless Steel/PBT Polyester
Housing Finish
Powder Coated
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 6 psi, For Use With GPI 118000-2, P-200H-2UR, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Hose Length 12 ft, Suction Tube Length Not Applicable, Cord Length 15 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
