Shop GPI

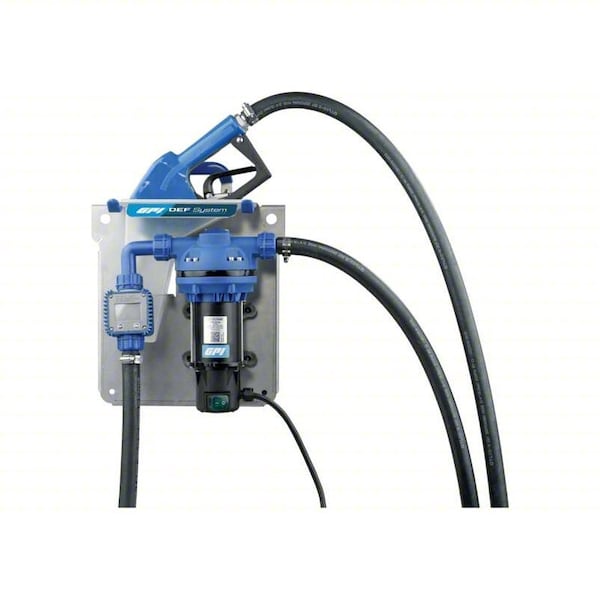

ElectricDrumPump, Nylon, 6/25hp, 12VDC

  • Mfr # 180012-03

  • Zoro # G822411081

product price:
$
905.99
/ea
Free Shipping & Returns

Key Features

Includes
Inlet Fitting, Dispensing Hose, Outlet Fitting, Hose Clamp, Inlet Hose, Cage Mounting Bracket, Nozzle Hose Barb Swivel
Housing Finish
Powder Coated
Includes Suction Tube
No
Self-Priming
Yes
Includes Follower Plate
No Follower Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
180012-03
Zoro #
G822411081
UPC #
00031401013474
Country of Origin
China

Dimensions

Adapter Connection Diameter
2 in
Hose Length
20 ft
Hose Outside Diameter
3/4 in
Cord Length
4 1/2 ft

Details

Includes
Inlet Fitting, Dispensing Hose, Outlet Fitting, Hose Clamp, Inlet Hose, Cage Mounting Bracket, Nozzle Hose Barb Swivel
Housing Finish
Powder Coated
Includes Suction Tube
No
Item
Electric Drum Pump
Self-Priming
Yes
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Not Rated
Maximum Oil Flow
8 gpm
Rated Voltage
12 V DC
Maximum Fluid Temperature
104 Degrees F
Standards
cULus
Meter Type Included
Digital
Features
Motor Protected by Run Timer to Prevent Accidental Continuous Operation
Duty Cycle
Intermittent
Discharge Tube Outlet OD
3/4 in
Mount Type
Bung
Housing Material
Nylon
Chemical Compatibility
DEF
Includes Bung Adapter
No
Nozzle Operation
Automatic
Variable Speed
No
Maximum Flow Rate
8 gpm
Maximum Viscosity
50 SUS
Pump Connection ID
1 in
Meter Unit Of Measure
Gallons
Pump Connection OD
1 in
Power Source - TS Only
Corded Electric
Motor Speed
1,800 RPM
Includes Spout
No
Pump Connection Type
Hose Barb
Adapter Connection Standard
MNPT
Motor Horsepower
6/25 hp
Maximum Head
5 1/2 ft
Nozzle Fluid Compatibility
DEF
Phase
Single
Includes Discharge Hose
Yes
Pump Technology
Diaphragm
Minimum Fluid Temperature
23 Degrees F
Seal Material
Buna-N
Maximum Outlet Pressure
23 psi
Wetted Material
EPDM/Nylon/Stainless Steel/TPU
Full Load Current
14.8 A
Static Protection
Not Groundable
For Container Type
Tank
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Not Recommended Chemicals
DEF
Maximum Head Pressure
23 psi
Includes Nozzle
Yes
Power Source
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length 20 ft, Suction Tube Length Not Applicable, Cord Length 4 1/2 ft, Includes Bung Adapter No, Nozzle Operation Automatic, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Features Motor Protected by Run Timer to Prevent Accidental Continuous Operation, Housing Finish Powder Coated, Includes Nozzle Yes

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
