Shop GPI

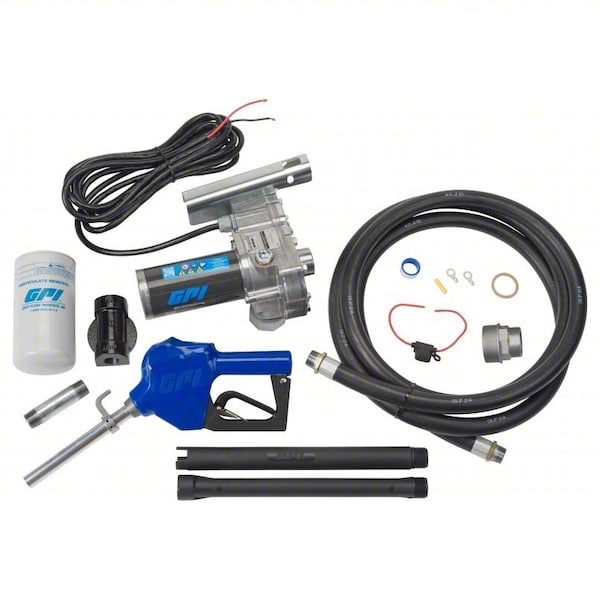

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # M-150S-AU W/FILTER

  • Zoro # G310070479

product price:  $653.99
/ea
Free Shipping & Returns

Key Features

Self-Priming
Yes
Max. Viscosity
50 SUS
Duty Cycle
30 Minutes On/30 Minutes Off
Cord Length
18 ft
Metered
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-150S-AU W/FILTER
Zoro #
G310070479
UPC #
-
Country of Origin
United States

Dimensions

Cord Length
18 ft
Hose Length
12 ft
Overall Length
9 1/8 in
For Container Size
10 gal, 500 gal
Hose Outside Dia.
3/4 in
Adapter Connection Diameter
2 in
Suction Tube Length
40 in
Hose Outside Diameter
3/4 in
Wire Rope Length
9 1/8 in

Details

Self-Priming
Yes
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Duty Cycle
30 Minutes On/30 Minutes Off
Metered
No
Motor Type
Rotary Gear
Motor RPM
1,900 RPM
Agency Compliance
CE, cULus, EEC
Housing Material - Pumps
Aluminum
Wetted Materials
Buna-N, Stainless Steel
Includes
Particulate Filter
Full Load Amps
25.0 A
Pump Connection Type
FNPT
Includes Discharge Hose
Yes
Hose Tube Material
Buna-N
Food Grade
No
Mount Type
Bung
Thermal Protection
Yes
Power Source
Corded Electric
Nozzle Operation
Automatic
Max. Flow Rate
15 gpm
Motor HP
1/5 hp
Includes Nozzle
Yes
Diesel Exhaust Fluid Compatible
No
Max. Outlet Pressure
15 psi
Rated Voltage
12 V DC
Pump Connection ID
1 in
Nozzle Fluid Compatibility
Diesel, Gasoline
Discharge Connection Type
FNPT
Pump Connection OD
1 in
For Media Type
Diesel, Gasoline, Kerosene
Housing Finish
Powder Coated
Variable Speed
No
Includes Suction Tube
Yes
Max. Fluid Temp.
125 Degrees F
Hose Cover Material
Buna-N
Suction Tube Material
Polypropylene
Filter Included
Particulate Filter
Explosion Proof
Yes
Phase
Single
Standards
CE, cULus, EEC
Includes Bung Adapter
Yes
Wetted Material
Buna-N/Stainless Steel
For Container Type
Tank
Maximum Outlet Pressure
15 psi
Maximum Head
5 1/2 ft
Housing Material
Aluminum
Meter Type Included
No Meter Included
Maximum Fluid Temperature
125 Degrees F
Seal Material
Buna-N
Maximum Flow Rate
15 gpm
Includes Spout
No
Pump Technology
Gear
Chemical Compatibility
Diesel, Gasoline, Kerosene
Full Load Current
25 A
Includes Follower Plate
No Follower Plate Included
Motor Speed
1,900 RPM
Maximum Viscosity
50 SUS
Adapter Connection Standard
MNPT
Motor Horsepower
1/5 hp
Hazardous Location Class
Class I Division 2 Group D
Static Protection
Grounding Line Included
Maximum Head Pressure
12 psi
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Discharge Connection Type FNPT, Housing Finish Powder Coated, Includes Nozzle Yes, Includes Spout No, Pump Connection Type FNPT
