Shop GPI

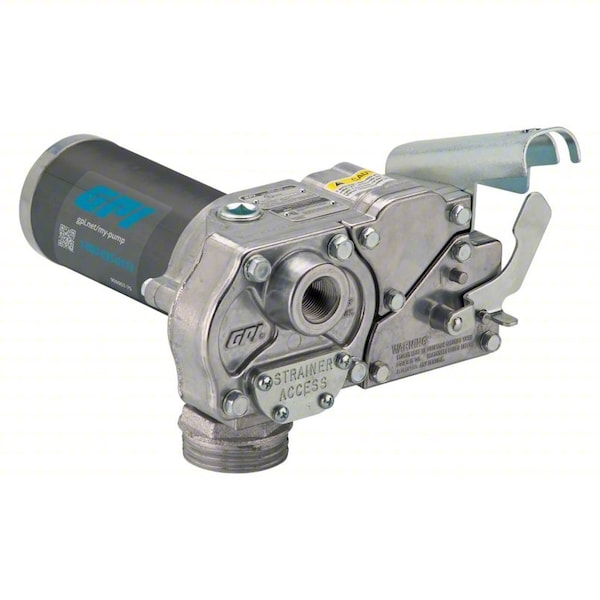

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # M150S-E-PO

  • Zoro # G210070371

product price:
$
388.99
/ea
Free Shipping & Returns

Key Features

Self-Priming
Yes
Max. Viscosity
50 SUS
Motor Type
Rotary Gear
Agency Compliance
CE, cULus, EEC
Cord Length
18 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M150S-E-PO
Zoro #
G210070371
UPC #
-
Country of Origin
United States

Dimensions

Cord Length
18 ft
Overall Length
9 3/16 in
For Container Size
10 gal, 500 gal
Adapter Connection Diameter
2 in
Wire Rope Length
9 3/16 in
Length
9 3/16 in

Details

Self-Priming
Yes
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Motor Type
Rotary Gear
Agency Compliance
CE, cULus, EEC
Includes
Nozzle Holder, Direct Mount
Housing Material - Pumps
Aluminum
Duty Cycle
30 Minutes On/30 Minutes Off
Metered
No
Motor RPM
1,900 RPM
Wetted Materials
Buna-N, Stainless Steel
Full Load Amps
25.0 A
Max. Outlet Pressure
15 psi
Includes Discharge Hose
No
Includes Suction Tube
No
Mount Type
Bung
Food Grade
No
Rated Voltage
12 V DC
Max. Fluid Temp.
125 Degrees F
Pump Connection Type
FNPT
Variable Speed
No
Thermal Protection
Yes
Diesel Exhaust Fluid Compatible
No
Hose Cover Material
Buna-N
Pump Connection OD
1 in
Nozzle Fluid Compatibility
Diesel, Gasoline
Pump Connection ID
1 in
Housing Finish
Powder Coated
Discharge Connection Type
FNPT
Explosion Proof
Yes
Power Source
Corded Electric
Motor HP
1/5 hp
For Media Type
Avgas, Diesel, Gasoline, Jet A-1, Kerosene
Max. Flow Rate
15 gpm
Includes Nozzle
No
Phase
Single
Seal Material
Buna-N
Pump Technology
Gear
Motor Speed
1,900 RPM
Chemical Compatibility
Diesel, Gasoline, Kerosene
Includes Spout
No
Includes Bung Adapter
Yes
Wetted Material
Buna-N/Stainless Steel
Maximum Flow Rate
15 gpm
Maximum Outlet Pressure
15 psi
Meter Type Included
No Meter Included
Standards
CE, cULus, EEC
Includes Follower Plate
No Follower Plate Included
Housing Material
Aluminum
Adapter Connection Standard
MNPT
For Container Type
Tank
Maximum Head
5 1/2 ft
Hazardous Location Class
Not Rated
Maximum Fluid Temperature
125 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Viscosity
50 SUS
Static Protection
Grounding Line Included
Motor Horsepower
1/5 hp
Full Load Current
25 A
Maximum Head Pressure
12 psi
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Fuel Transfer Pump, Max. Outlet Pressure 15 psi, Rated Voltage 12V DC, Pump Connection ID 1 in, Hose Length Not Applicable, Cord Length 18 ft, Nozzle Operation Not Applicable, Thermal Protection Yes, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Discharge Connection Type FNPT, Housing Finish Powder Coated, Includes Nozzle No, Nozzle Material Not Applicable, Pump Connection Type FNPT
