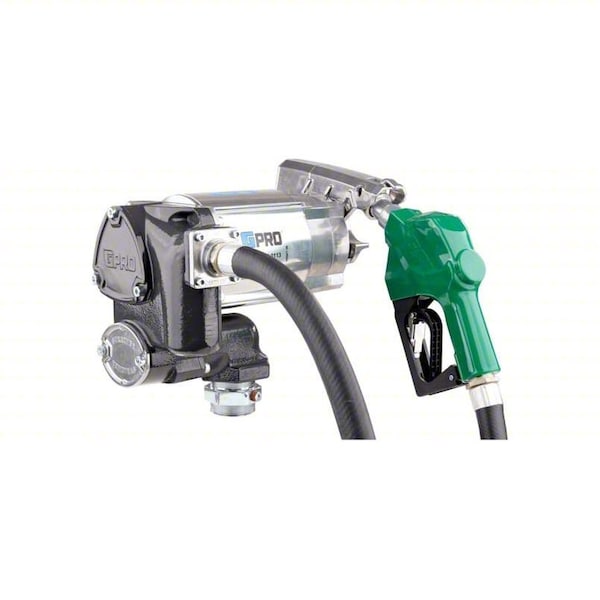

ElectricDrumPump, Alum/Iron, 120/240VAC

  • Mfr # 172000-03

  • Zoro # G222324127

product price:
$
1,807.99
/ea
Free Shipping & Returns

Key Features

Maximum Viscosity
50 SUS
Includes Suction Tube
No
For Container Type
Tank
Housing Finish
Powder Coated
Static Protection
Grounding Line Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
172000-03
Zoro #
G222324127
UPC #
00031401013627
Country of Origin
United States

Dimensions

Adapter Connection Diameter
2 in
For Container Size
10 gal, 1,000 gal
Hose Outside Diameter
1 in
Hose Length
18 ft

Details

Maximum Viscosity
50 SUS
Includes Suction Tube
No
For Container Type
Tank
Housing Finish
Powder Coated
Static Protection
Grounding Line Included
Includes Bung Adapter
Yes
Adapter Connection Standard
MNPT
Power Source - TS Only
Cordless Battery
Includes Nozzle
Yes
Minimum Fluid Temperature
-20 Degrees F
Motor Speed
1,725 RPM
Maximum Fluid Temperature
125 Degrees F
Frequency
60 Hz
Item
Electric Drum Pump
Housing Material
Aluminum/Cast Iron
Features
Easy Access to Fuel Strainer: Five Minutes to Clean Strainer without Removing the Pump from the Tank, Overhaul Kits and Replacement Parts Available to Extend the Service Life of the Pump, Vertical Nozzle Orientation, Keeps Tanks Clean and Offers Easy Nozzle Placement After Use
Meter Type Included
No Meter Included
Rated Voltage
120/240 V AC
Motor Horsepower
1 hp
Not Recommended Chemicals
Diesel Fuel, B20, Gasoline, E15, Kerosene
Includes Follower Plate
No Follower Plate Included
Pump Technology
Vane
Variable Speed
No
Hazardous Location Class
Class I Division 1 Group D
Pump Connection OD
1 1/4 in
Duty Cycle
30 Minutes On/30 Minutes Off
Includes Spout
No
Wetted Material
Acetal/Aluminum/Carbon/Cast Iron/FKM/Nitrile Rubber/PBT/Polyester/Steel
Pump Connection ID
1 1/4 in
Includes Discharge Hose
Yes
Full Load Current
8.1/4.3 A
Maximum Head
15 ft
Thermal Protection
Yes
Chemical Compatibility
Diesel, Gasoline, Kerosene
Includes
Dispensing Hose, Lockable Nozzle Holder, Outlet Fitting, Tank Adapter, Thread Tape
Standards
cULus Motor, UL 79
Nozzle Fluid Compatibility
Diesel, Gasoline
Mount Type
Bung
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Oil Flow
35 gpm
Phase
Single
Pump Connection Type
FNPT
Maximum Flow Rate
35 gpm
Seal Material
Buna-N
Maximum Outlet Pressure
24 psi
Nozzle Operation
Automatic
Maximum Head Pressure
25 psi
Power Source
Cordless Battery
Power Source - old
Cordless Battery

Description

Electric Drum Pump, Rated Voltage 120/240 V AC, Plug Type Not Applicable, Pump Connection ID 1 1/4 in, Suction Tube OD Not Applicable, Hose Length 18 ft, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Cordless Battery, Variable Speed No, Includes Discharge Hose Yes
