Shop GPI

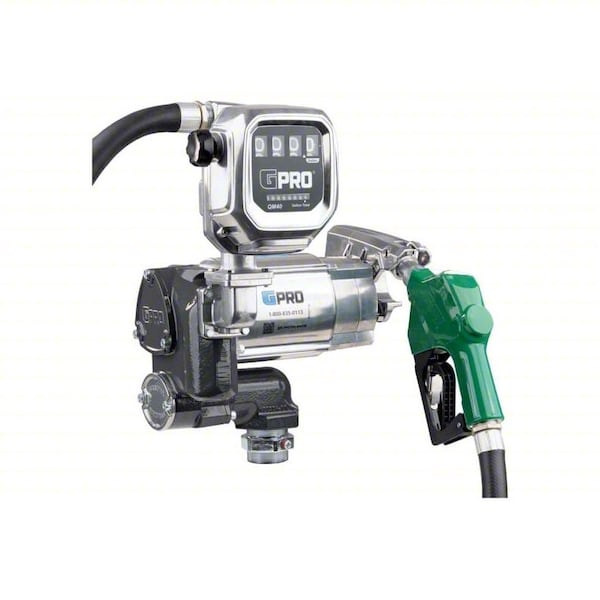

ElectricDrumPump, Alum/Iron, 120/240VAC

  • Mfr # 172050-06

  • Zoro # G122324258

product price:
$
2,226.99
/ea
Free Shipping & Returns

Key Features

Discharge Tube Outlet OD
1 in
Frequency
60 Hz
Includes Discharge Hose
Yes
Standards
cULus Motor, UL 79
Motor Speed
1,725 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
172050-06
Zoro #
G122324258
UPC #
00031401013696
Country of Origin
United States

Dimensions

Hose Outside Diameter
1 in
Hose Length
18 ft
For Container Size
10 gal, 1,000 gal
Adapter Connection Diameter
2 in

Details

Discharge Tube Outlet OD
1 in
Frequency
60 Hz
Includes Discharge Hose
Yes
Standards
cULus Motor, UL 79
Motor Speed
1,725 RPM
Thermal Protection
Yes
Minimum Fluid Temperature
-20 Degrees F
Variable Speed
No
Wetted Material
Acetal/Aluminum/Carbon/Cast Iron/FKM/Nitrile Rubber/PBT/Polyester/Steel
Includes Spout
No
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Head
15 ft
Motor Horsepower
1 hp
Features
Easy Access to Fuel Strainer: Five Minutes to Clean Strainer without Removing the Pump from the Tank, Overhaul Kits and Replacement Parts Available to Extend the Service Life of the Pump, Vertical Nozzle Orientation, Keeps Tanks Clean and Offers Easy Nozzle Placement After Use
Housing Material
Aluminum/Cast Iron
Includes Suction Tube
No
Nozzle Fluid Compatibility
Diesel, Gasoline
Maximum Head Pressure
25 psi
Maximum Oil Flow
35 gpm
Chemical Compatibility
Diesel, Gasoline, Kerosene
Includes
Dispensing Hose, Lockable Nozzle Holder, Outlet Fitting, Tank Adapter, Thread Tape
Pump Connection ID
1 1/4 in
Discharge Connection Type
MNPT
Includes Bung Adapter
Yes
Power Source - TS Only
Cordless Battery
Item
Electric Drum Pump
For Container Type
Tank
Adapter Connection Standard
MNPT
Maximum Fluid Temperature
125 Degrees F
Includes Nozzle
Yes
Meter Unit Of Measure
Gallons
Meter Type Included
Mechanical
Duty Cycle
30 Minutes On/30 Minutes Off
Phase
Single
Housing Finish
Powder Coated
Rated Voltage
120/240 V AC
Full Load Current
8.1/4.3 A
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Class I Division 1 Group D
Pump Connection OD
1 1/4 in
Static Protection
Grounding Line Included
Pump Connection Type
FNPT
Maximum Outlet Pressure
24 psi
Maximum Viscosity
50 SUS
Nozzle Operation
Automatic
Not Recommended Chemicals
Diesel Fuel, B20, Gasoline, E15, Kerosene
Maximum Flow Rate
35 gpm
Seal Material
Buna-N
Mount Type
Bung
Pump Technology
Vane
Power Source
Cordless Battery
Power Source - old
Cordless Battery

Description

Electric Drum Pump, Rated Voltage 120/240 V AC, Plug Type Not Applicable, Pump Connection ID 1 1/4 in, Suction Tube OD Not Applicable, Hose Length 18 ft, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Cordless Battery, Variable Speed No, Includes Discharge Hose Yes, Discharge Connection Type MNPT
