This item is Discontinued.

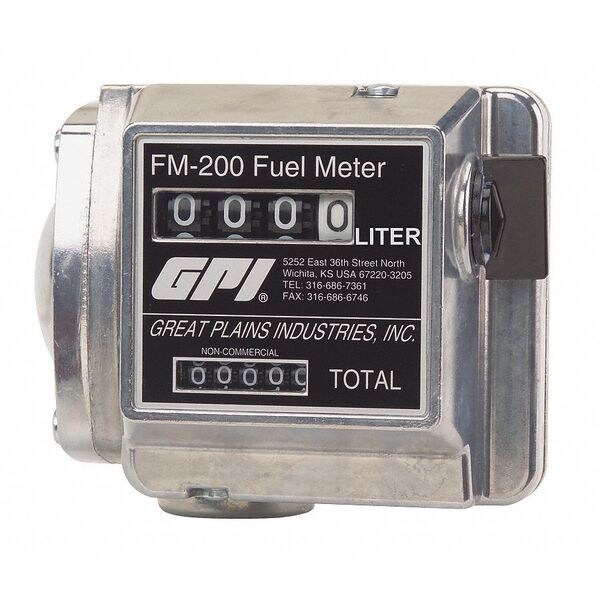

Gpi Flowmeter, Mechanical, 1 In, 15 to 76 LPM FM-200-L8N

Flowmeter, Mechanical, 1 In, 15 to 76 LPM (Discontinued)

  • Mfr # FM-200-L8N
  • Zoro # G4241991
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FM-200-L8N
Zoro #
G4241991
UPC #
031401111231
Country of Origin
United States

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Length
5 13/16 in
Width
5 1/4 in
Connection Size (In.)
1 MNPT
Height
4 1/2 in
Manufacturers Warranty Length
2 yr
Length (In.)
5-13/16"
Height (In.)
4-1/2
Width (In.)
5-1/4"

Details

Item
Mechanical Flowmeter
Type
Mechanical
Housing Material
Aluminum
Flow Material
Gasoline (Alcohol Blends up to E15), Diesel Fuel (Biodiesel Blends B20) and Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, PBT, Polyester, 303 Stainless Steel
Max. Viscosity
44 SSU
Flow Range
4 to 20 gpm
Fluid Temp. Range
-20 Degrees to 125 Degrees F
Fitting
Aluminum
Master Totalizer
999,999L
Flow Range (GPM)
4 to 20
Max. Temp. (F)
125
Shaft Material
Stainless Steel
Application
Mechancial Nutating Disc Flow Meter for Gasoline (Alcohol Blends E15), Diesel Fuel (Biodiesel Blends B20) and Kerosene
GPM Max.
20
Agency Compliance
UL Listed
Pressure Drop - 100% Flow (PSI)
10.00 psi
Resetable Cumulative Totalizer
9, 999L in 1/10L increments
Flow Range (LPM)
15 to 76
Display
Mechancial Register
Max. Pressure (PSI)
50
Chamber Material
PBT Polyestester
Pressure Drop - 50% Flow (PSI)
5.00 psi
Thread
NPT
Seal Material
Nitrile
Flow Range @ GPM of Water
4 to 20
Accuracy (%)
+/-2
Temp.
125 Degrees F

Description

Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1 in, Connection Size 1 in, Connection Type FNPT, Fluid Temp. Range -20 Degrees to 125 Degrees F, Wetted Materials Aluminum, PBT, Polyester, 303 Stainless Steel, Max. Pressure 50 psi, Flow Range 4 to 20 gpm, Max. Viscosity 44 SSU, Flow Material Gasoline (Alcohol Blends up to E15), Diesel Fuel (Biodiesel Blends B20) and Kerosene, Mechanical, GPM Max. 20, Length 5 13/16 in, Width 5 1/4 in, Height 4 1/2 in, Housing Material Aluminum
