  5. Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet

This item is Discontinued.

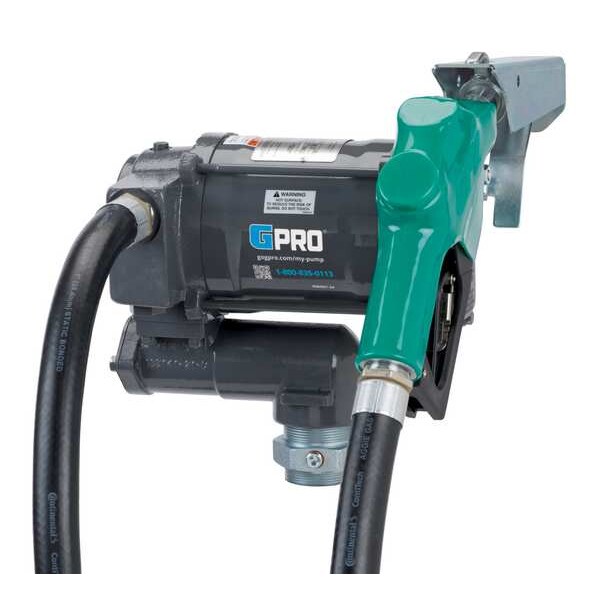

Gpi Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet PRO20-115AD

Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet (Discontinued)

  • Mfr # PRO20-115AD
  • Zoro # G8353528
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO20-115AD
Zoro #
G8353528
UPC #
031401003543
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Length
12 in
Hose Length
18 ft
Overall Width
14 in
Hose Dia.
1 in
Pump Mount Size
2 in
Overall Height
14 in
Outlet Size
1 in NPT
Manufacturers Warranty Length
5 yr
For Container Size
30 gal
Bung Connection Dia.
2 in
Hose Outside Dia.
1 in
Height Above Container
13 in

Details

Voltage
115V AC
HP
1/3
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Buna-N
RPM
1725
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
50 SUS
Item
Fuel Transfer Pump
Standards
Class I Div 2, cULus Listed, IECEx/ATEX Zone 1
Agency Compliance
ATEX, Class I Div 2, cULus, IECEx
Features
Self priming, Durable Powder-coated Finish, Explosion Proof Motor, Thermal Overload Protection, Vacuum Breaker Ready
Pressure Range
22 psi
Motor Enclosure
Explosion Proof
Max. Head - Pumps
4 4/5 ft
Metered
No
Housing Material - Pumps
Cast Iron
For Use With
Diesel, Gasoline, Kerosene
Bearing Type
Sealed Ball
Includes
Automatic Shut-Off Diesel Nozzle, Dispensing Hose, Pump, Tank Adapter
Motor RPM
1,725 RPM
Nozzle Type
Automatic
Duty Cycle
30 Minutes On/30 Minutes Off
Nozzle Material
Aluminum
Adapter Material
Aluminum
Compatible Fluids
Diesel, Gasoline, Kerosene
Transfer Pump Application
Stationary Locations in Fleet
Amps AC
4.9
Bypass Valve
Yes
Explosion Proof
Yes
Max. Fluid Temp.
125 Degrees F
Housing Finish
Powder Coated
Discharge Connection Type
FNPT
Includes Discharge Hose
Yes
Number of Phases
1
Includes Spout
No
Frequency (Hz)
60 Hz
Hose Tube Material
Nitrile
Thermal Protection
Yes
Food Grade
No
Nozzle Fluid Compatibility
Diesel
Adapter Connection Type
MNPT
Spout Material
Aluminum
For Media Type
Diesel, Gasoline, Kerosene
Hose Cover Material
Nitrile
Diesel Exhaust Fluid Compatible
No
Pump Connection Type
FNPT
Nozzle Operation
Automatic
Runs Dry
No
Min. Fluid Temp.
-20 Degrees F
Full Load Amps
4.9 A
Power Source
Electric
Includes Bung Adapter
Yes
Max. Outlet Pressure
22 psi
Includes Suction Tube
No
Includes Nozzle
Yes
Compatible Chemicals
Diesel, Gasoline, Kerosene
Motor HP
1/3 hp
Rated Voltage
115V AC
Variable Speed
No
Mount Type
Bung
Max. Flow Rate
20 gpm

Description

Fuel Transfer Pump, Max. Outlet Pressure 22 psi, For Use With Diesel, Gasoline, Kerosene, Rated Voltage 115V AC, Suction Tube OD Not Applicable, Hose Length 18 ft, Suction Tube Length Not Applicable, Cord Length Not Applicable, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Diesel, Gasoline, Kerosene

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
