  5. Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet

This item is Discontinued.

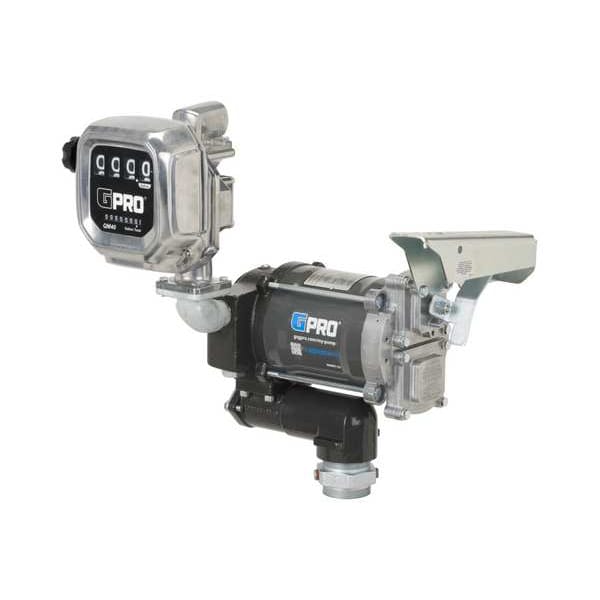

Gpi Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet PRO20-115PO/QM40G8N

Fuel Transfer Pump, 115V AC, 20 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1 in NPT Inlet (Discontinued)

  • Mfr # PRO20-115PO/QM40G8N
  • Zoro # G1951438
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO20-115PO/QM40G8N
Zoro #
G1951438
UPC #
031401006551
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Hose Dia.
1 in
Manufacturers Warranty Length
5 yr
Outlet Size
1 in NPT
Power Cord Length
18 ft
Overall Length
17 in
Overall Height
18 in
Overall Width
16 in
Pump Mount Size
2 in
Cord Length
18 ft
Bung Connection Dia.
2 in
For Container Size
30 gal
Height Above Container
13 in

Details

Voltage
115V AC
HP
1/3
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Buna-N
RPM
1725
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
50 SUS
Item
Fuel Transfer Pump
Includes
Automatic Shut-Off Diesel Nozzle, Dispensing Hose, Lockable Nozzle Holder, Pump, QM Meter, Tank Adapter
Amps AC
4.9
Motor RPM
1,725 RPM
Metered
Yes
For Use With
Diesel, Gasoline, Kerosene
Bearing Type
Sealed Ball
Standards
Class I Div 1, cULus Listed, IECEx/ATEX Zone 1
Max. Head - Pumps
4 4/5 ft
Adapter Material
Aluminum
Features
Self priming, Durable Powder-coated Finish, Explosion Proof Motor, Thermal Overload Protection, Vacuum Breaker Ready
Motor Enclosure
Explosion Proof
Agency Compliance
Class I Div 2, cULus
Duty Cycle
30 Minutes On/30 Minutes Off
Housing Material - Pumps
Cast Iron
Compatible Fluids
Diesel, Gasoline, Kerosene
Pressure Range
22 psi
Transfer Pump Application
Stationary Locations in Fleet
Bypass Valve
Yes
Meter Unit Of Measure
Gallons
Discharge Connection Type
FNPT
Thermal Protection
Yes
Explosion Proof
Yes
Runs Dry
No
Rated Voltage
115V AC
Food Grade
No
Pump Connection Type
FNPT
Includes Suction Tube
No
Power Source
Electric
Spout Material
Aluminum
Max. Flow Rate
20 gpm
For Media Type
Avgas, Diesel, Gasoline, Jet A-1, Kerosene
Nozzle Fluid Compatibility
Diesel
Includes Discharge Hose
No
Mount Type
Bung
Min. Fluid Temp.
-20 Degrees F
Motor HP
1/3 hp
Full Load Amps
4.9 A
Adapter Connection Type
MNPT
Nozzle Operation
Automatic
Number of Phases
1
Includes Nozzle
No
Max. Outlet Pressure
22 psi
Hose Cover Material
Nitrile
Meter Type
Mechanical
Compatible Chemicals
AVGAS, Diesel, Gasoline, Jet A, Kerosene
Diesel Exhaust Fluid Compatible
No
Frequency (Hz)
60 Hz
Variable Speed
No
Includes Spout
No
Housing Finish
Powder Coated
Includes Bung Adapter
Yes
Max. Fluid Temp.
125 Degrees F

Description

Fuel Transfer Pump, Max. Outlet Pressure 22 psi, For Use With Diesel, Gasoline, Kerosene, Rated Voltage 115V AC, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals AVGAS, Diesel, Gasoline, Jet A, Kerosene
