  9. Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV

This item is Discontinued.

Grape Solar Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV GS-400-KIT-BT

Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV (Discontinued)

  • Mfr # GS-400-KIT-BT
  • Zoro # G300422639
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GS-400-KIT-BT
Zoro #
G300422639
UPC #
817732013204
Country of Origin
Multiple

Details

Item
Solar Panel Kit
Maximum Power Point
200 W
Cell Type
Monocrystalline
Voltage @ Maximum Power Point
20.3V DC
Current @ Maximum Power Point
9.85 A
Number of Cells
36
Connector
4mm PV
Battery Type
Lithium-Ion
Open Circuit Voltage
24.35 V
Includes

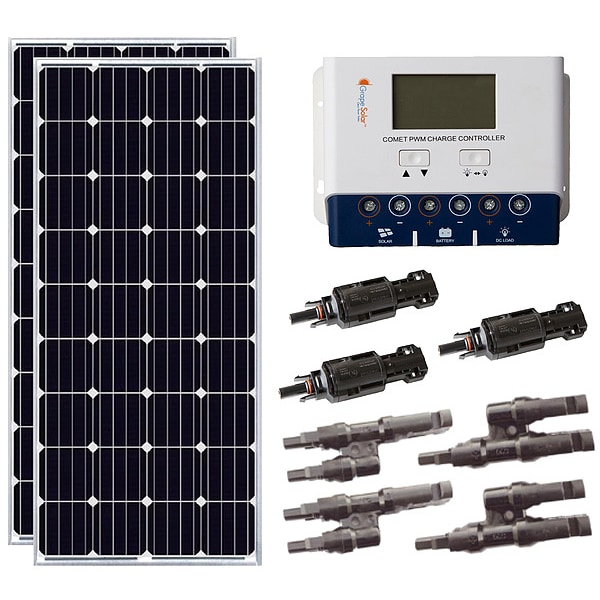

(2) Grape Solar GS-Star-200W 200-Watt Monocrystalline Solar Panels, 40A Grape Solar Comet Charge Controller, Cables
Short Circuit Current
10.33 A
For Use With
12-Volt Batteries, Boats, Charging Small Electronic Devices, Deep Cycle Batteries including Lithium-Ion, Off-Grid Power Applications Including Cabins, Operating LED Lights, RVs, Small Pumps
Enclosure Material
Aluminum
Standards
CSA Certified, UL Listed
Weight
70 lb
Features
Anodized Frame, Monocrystalline Panels, Weatherproof Panel
Number of Solar Panels
2
Modes of Operation
PWM Charge Controller
Mounting Hardware
Not Included
Battery Voltage
12 V DC
Temperature Coefficient of PM
-0.41%/ Degrees C
Includes Battery
No
Maximum Operating Temperature
85 Degrees C
Rated Snow/Wind Load
50 lb/sq ft
Normal Operating Cell Temperature (NOCT)
45 Degrees C
Solar Panel Frame Material
Aluminum
Total System Power Output
400 W
Compatible with Series
GS-Star
Includes Mounting Hardware
No
Minimum Operating Temperature
-40 Degrees C
Nominal Output Power
400 W
Panel Max. Power Point Current
9.85A
Panel Max. Power Point Voltage
20.3V DC

Description

Solar Panel Kit, Maximum Power Point 200 W, Total System Power Output 400 W, Battery Capacity Not Applicable, Includes Battery No, Number of Cells 36, Voltage @ Maximum Power Point 40.62 V, Current @ Maximum Power Point 9.85 A, Compatible with Series GS-Star, Number of Solar Panels 2, Mounting Type Ground, Includes (2) Grape Solar GS-Star-200W 200-Watt Monocrystalline Solar Panels, 40A Grape Solar Comet Charge Controller, Cables, Cell Type Monocrystalline, Battery Type Lithium-Ion
