  9. Solar Charge Cntrllr, 60A, 150V DC, 24 V DC
Grape Solar Solar Charge Cntrllr, 60A, 150V DC, 24 V DC GS-MPPT-ZENITH-60 - main

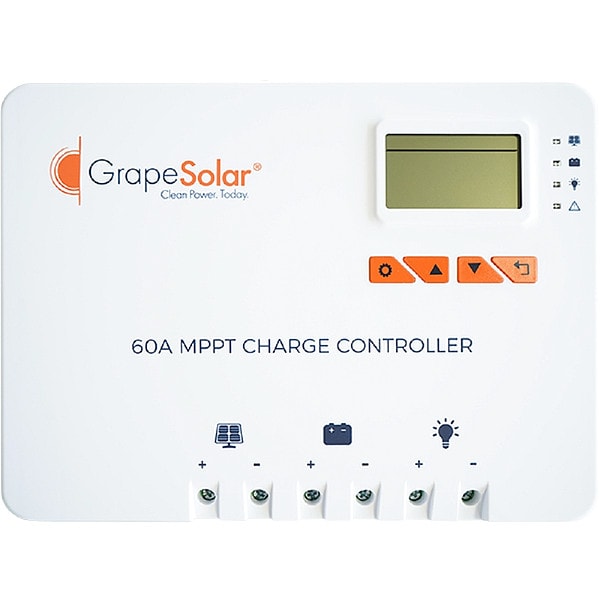

Solar Charge Cntrllr, 60A, 150V DC, 24 V DC

  • Mfr # GS-MPPT-ZENITH-60

  • Zoro # G9323402

product price: $479.99
/ea
Free Shipping & Returns

Key Features

Max. Battery Charging Voltage
24V DC
Max. Current
60 A
Depth
3 5/8 in
Battery Type
Flooded Lead Acid, Gel Cell, Lithium-Ion
Operating Temp.
-31 Degrees to 113 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GS-MPPT-ZENITH-60
Zoro #
G9323402
UPC #
817732013075
Country of Origin
China

Dimensions

Depth
3 5/8 in
Width
8 1/8 in
Height
11-1/4 in
Overall Width
8.3 in
Overall Height
3.5 in
Overall Depth
11 in

Details

Item
Solar Charge Controller
Max. Battery Charging Voltage
24V DC
Max. Current
60 A
Battery Type
Flooded Lead Acid, Gel Cell, Lithium-Ion
Operating Temp.
-31 Degrees to 113 Degrees F
No-Load Loss
10 mA @ 24V, 12 mA @ 12V, 6 mA @ 48V, 8 mA @ 36V
Features
24V, Large LCD Screen, Power Point Tracking Algorithms and Advanced Digital Power Supply Technology, TVS Lightning Protection, Works with Battery of 12
IP Rating
IP32
Max. Solar Input Voltage
150V DC
Green Environmental Attribute
Product is Powered by Renewable Energy
Interface
Bluetooth, RS485
Maximum Battery Charging Voltage
24 V DC
Maximum Operating Temperature
113 Degrees F
Compatible with Brand
Grape Solar
Maximum Solar Input Voltage
150 V DC
Minimum Operating Temperature
-31 Degrees F
Maximum Current
60 A

Description

Solar Charge Controller, Maximum Current 60 A, Maximum Solar Input Voltage 150 V DC, Maximum Battery Charging Voltage 24 V DC, Battery Type Flooded Lead Acid, Gel Cell, Lithium-Ion, IP Rating IP32, Maximum Operating Temperature 113 Degrees F, Minimum Operating Temperature -31 Degrees F, Overall Depth 11 in, Overall Height 3.5 in, Overall Width 8.3 in, Interface Bluetooth, RS485, No-Load Loss 10 mA @ 24V, 12 mA @ 12V, 6 mA @ 48V, 8 mA @ 36V, Compatible with Brand Grape Solar
