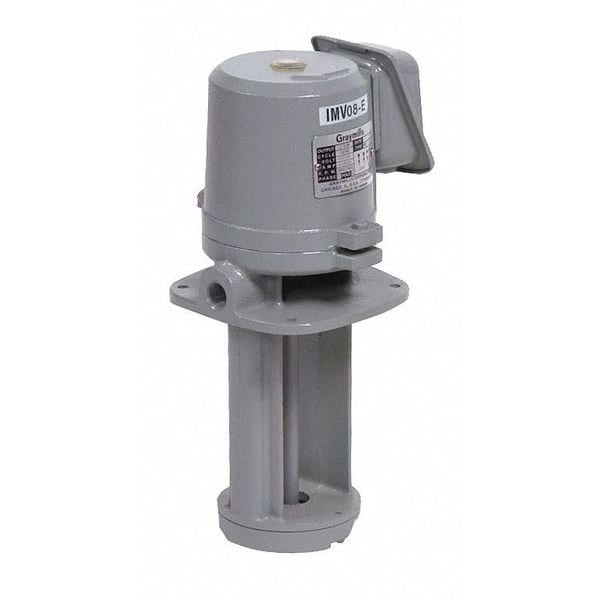

MachineToolPump, 1hp, 230/460V AC, CI
- Mfr # IMV100-F
- Zoro # G6176515
product price:Â
$
1,159.99
/ea
Free Shipping & Returns
Key Features
Priming
Self-Priming
Pump Housing Material
Cast Iron
Overall Height
22.1 in
Impeller Material
Aluminum
Flow Rate @ 15 ft of Head (Maximum, Water)
47 gpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- IMV100-F
- Zoro #
- G6176515
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Machine Tool Pump
- Priming
- Self-Priming
- Pump Housing Material
- Cast Iron
- Impeller Material
- Aluminum
- Flow Rate @ 15 ft of Head (Maximum, Water)
- 47 gpm
- Flow Rate @ 20 ft of Head (Maximum, Water)
- 44 gpm
- Horsepower
- 1 hp
- System Pressure (Maximum)
- 26.87 psi
- Compatible with Media Type
- Coolants, Heavy Liquid, Liquid with Fine Contaminants, Solid, Water
- Flow Rate (Maximum, Water)
- 55 gpm
- Flow Rate @ 10 ft of Head (Maximum, Water)
- 48 gpm
- Electrical Connection Type
- Junction Box
- Viscosity (Maximum)
- 500 SUS
- Media Temperature (Maximum)
- 180 Degrees F
- Motor Enclosure
- Totally Enclosed Fan Cooled
- Phase
- Three
- Feet of Head (Maximum)
- 62 ft
- Nameplate Voltage
- 230/460V AC
- Flow Rate @ 5 ft of Head (Maximum, Water)
- 50 gpm
- Feet of Head (Minimum)
- 5 ft
- Flow Rate (Minimum, Water)
- 0 gpm
- Frequency
- 60 Hz
Dimensions
- Overall Height
- 22.1 in
- Base Diameter
- 7.31 in
- Overall Width
- 11.47 in
- Inlet Diameter
- 1 in
- Length
- 11.47 in
- Manufacturer Warranty Length
- 1 Year Limited Warranty
- Immersion Depth (Maximum)
- 11 in
- Discharge Diameter
- 1 in
- Overall Length
- 11.47 in
Description
Machine Tool Pump, Nameplate Voltage 230/460V AC, Phase Three, Pump Housing Material Cast Iron, Horsepower 1 hp, Maximum Viscosity 500 SUS, Flow Rate (Maximum, Water) 55 gpm, Flow Rate @ 5 ft of Head (Maximum, Water) 50 gpm, Flow Rate @ 10 ft of Head (Maximum, Water) 48 gpm, Flow Rate @ 15 ft of Head (Maximum, Water) 47 gpm, Maximum Feet of Head 55 ft, Immersion Depth (Maximum) 11 in, Compatible Intake Pipe Size 1 in, Compatible Discharge Pipe Size 1 in, Intake Type NPT, Discharge Type NPT
