  11. 60" Hydraulic Pole Tamper, Kidney Foot, Flow Range 4-6 GPM
Shop All Hydraulic Sign Post Drivers
Greenlee

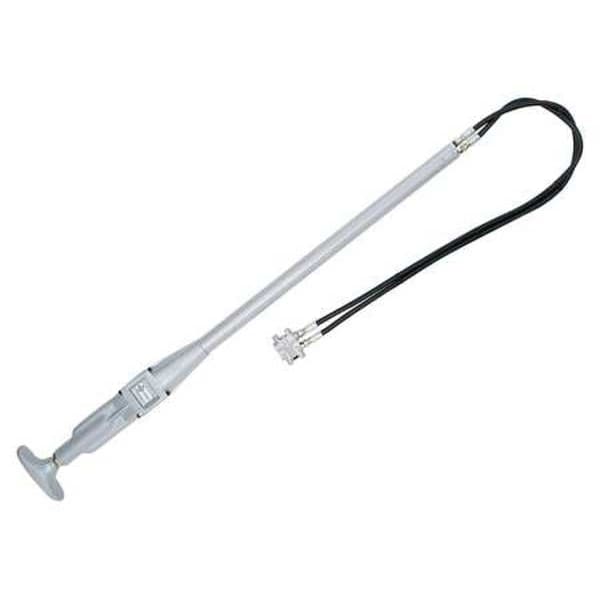

60" Hydraulic Pole Tamper, Kidney Foot, Flow Range 4-6 GPM

product price: $2,095.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hydraulic System Type Closed Center and Open Center
  • Blows per Minute 1160@5GPM
  • Recommended Hydraulic Flow 4-6 gpm
  • Type Hydraulic
  • Sound Level dB 103
See all product information

Product Information

Dimensions

Foot Size 2-1/2 in x 8 in
Length 60 in
Width 4 in
Tool Length 60 in
Foot Length 2 1/2 in
Foot Width 8 in
Tool Width 4 in

Details

Item Pole Tamper
Hydraulic System Type Closed Center and Open Center
Blows per Minute 1160@5GPM
Recommended Hydraulic Flow 4-6 gpm
Type Hydraulic
Sound Level dB 103
Includes Kidney-Shaped Foot
Max. Flow (GPM) 6
Recommended Filtration (microns) 10
Max. Back Pressure 200 psi
Max. Oil Temp. 140 Degrees F
Pressure Port 9/16 in - 18 SAE O-Ring
Min. Flow (GPM) 4
Return Port 3/4 in - 16 SAE
Max. Pressure (PSI) 2,000 psi
Weight 23 lb
Features Hose End Valve
Maximum Flow Rate 6 gpm
Recommended Hydraulic Flow Rate 5 gpm
Product Type Pole Tamper
Tool Weight 23 lb
Relief Valve Pressure Setting 2,000 psi
Minimum Flow Rate 4 gpm
Valve Location Hose End
Standards SAE Standard J1273
Maximum Oil Temperature 140 Degrees F
Tool Series H4802
Maximum Blows per Minute 1,300 bpm
Minimum Operating Pressure 1,000 psi
Maximum Operating Pressure 2,000 psi
Maximum Back Pressure 200 psi
Recommended Filtration 10 micron

Description

Pole Tamper, Product Type Pole Tamper, Sign Post Drive Size Not Applicable, Blow Energy Not Applicable, Maximum Blows per Minute 1,300 bpm, Tool Length 60 in, Valve Location Hose End, Pressure Port 9/16 in - 18 SAE O-Ring, Return Port 3/4 in - 16 SAE, Minimum Operating Pressure 1,000 psi, Maximum Operating Pressure 2,000 psi, Minimum Flow Rate 4 gpm, Maximum Flow Rate 6 gpm, Foot Width 8 in, Foot Length 2 1/2 in, Tool Series H4802, Features Hose End Valve
