Shop All Hydraulic Sign Post Drivers
Greenlee

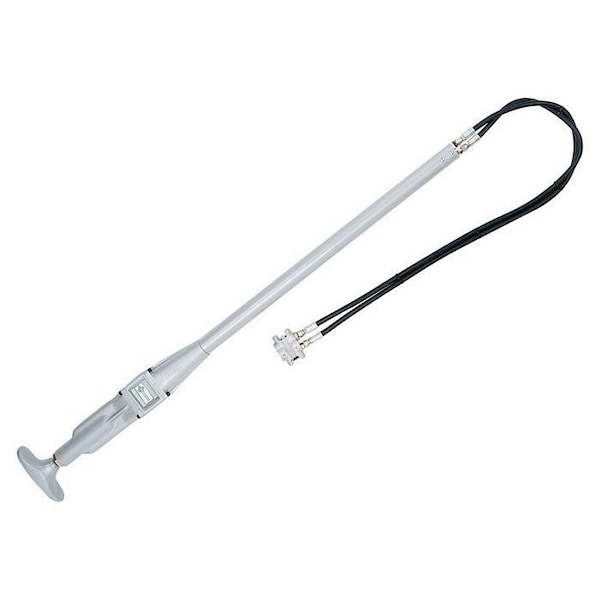

Pole Tamper, 60 In, With Hose End Valve

product price: $2,292.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hydraulic System Type Open or Closed Center
  • Blows per Minute 1160@5GPM
  • Recommended Hydraulic Flow 4-6 gpm
  • Max. Oil Temp. 140 Degrees F
  • Return Port 3/4"- 16 SAE O-Ring
See all product information

Product Information

Dimensions

Width 4 in
Foot Size 2-1/2 in x 8 in
Length 60 in
Foot Length 2 1/2 in
Foot Width 8 in
Tool Width 4 in
Tool Length 60 in

Details

Item Pole Tamper
Hydraulic System Type Open or Closed Center
Blows per Minute 1160@5GPM
Recommended Hydraulic Flow 4-6 gpm
Max. Oil Temp. 140 Degrees F
Return Port 3/4"- 16 SAE O-Ring
Includes Pole Tamper, Hose End Valve
Recommended Filtration (microns) 10
Max. Flow (GPM) 6
Min. Flow (GPM) 4
Max. Back Pressure 200 psi
Weight 23 lb
Type Hydraulic
Sound Level dB 103
Max. Pressure (PSI) 2,000 psi
Pressure Port 9/16"- 18 SAE O-Ring
Features Hose End Valve
Standards SAE Standard J1273
Tool Weight 23 lb
Product Type Pole Tamper
Maximum Back Pressure 200 psi
Maximum Operating Pressure 2,000 psi
Maximum Oil Temperature 140 Degrees F
Recommended Hydraulic Flow Rate 5 gpm
Valve Location Hose End
Maximum Blows per Minute 1,300 bpm
Maximum Flow Rate 6 gpm
Relief Valve Pressure Setting 2,000 psi
Tool Series H4802
Recommended Filtration 10 micron
Minimum Flow Rate 4 gpm
Minimum Operating Pressure 1,000 psi

Description

Pole Tamper, Product Type Pole Tamper, Sign Post Drive Size Not Applicable, Blow Energy Not Applicable, Maximum Blows per Minute 1,300 bpm, Tool Length 60 in, Valve Location Hose End, Pressure Port 9/16 in - 18 SAE O-Ring, Return Port 3/4 in - 16 SAE, Minimum Operating Pressure 1,000 psi, Maximum Operating Pressure 2,000 psi, Minimum Flow Rate 4 gpm, Maximum Flow Rate 6 gpm, Foot Width 8 in, Foot Length 2 1/2 in, Tool Series H4802, Features Hose End Valve
