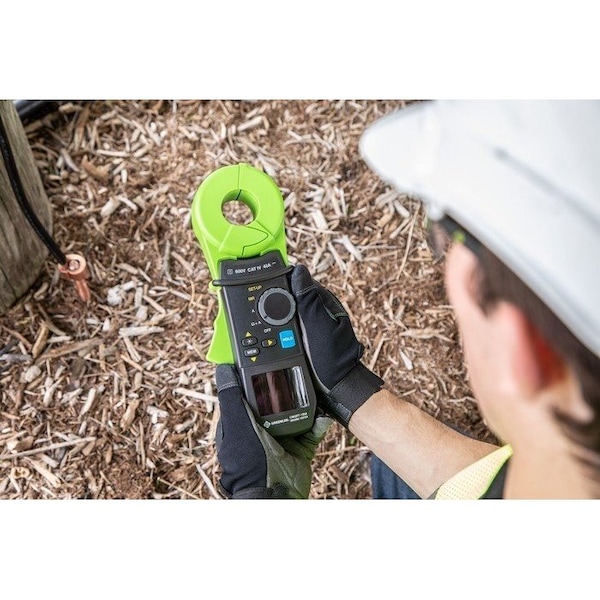

Earth Ground Tester, 50/60 Hz Frequency

  • Mfr # CMGRT-100A
  • Zoro # G7951205
product price:
$
2,304.99
/ea
Free Shipping & Returns

Key Features

Resolution
1 to 1500 ohms
Operating Frequency
128 Hz, 2,083 Hz, 50 Hz, 60 Hz
Soil Resistivity
No
Jaw Capacity
1.4 in
Earth Volts
600V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CMGRT-100A
Zoro #
G7951205
UPC #
783310082217
Country of Origin
Korea, Republic of

Dimensions

Manufacturer Warranty Length
Limited Lifetime
Battery Size
9V
Fits Chest Size
Fully Auto-Ranging with Data Hold to Capture Readings

Details

Item
Earth Ground Tester
Resolution
1 to 1500 ohms
Operating Frequency
128 Hz, 2,083 Hz, 50 Hz, 60 Hz
Soil Resistivity
No
Jaw Capacity
1.4 in
Earth Volts
600V AC
Resistance Accuracy
+/-1.5% to +/-10%
Standards
CE, ETL
Includes
Calibration Verification Loop, Carrying Case
Counts
4,000
Power Source
Battery
Earth Ground Resistance Range
0.0001 to 1.2 kilohm
Safety Rating
CAT IV 600V
Tester Type
Ground Resistance Tester
Bluetooth Compatible
No
Dustproof
No
Current Accuracy
+/-1.5% to +/-10%
Measurement Connectors
One Clamp
Test Voltage
0 to 75V
Display Screen Type
OLED
Maximum Ground Resistance Measurement
1,500 ohm
Features
Fully Auto-Ranging with Data Hold to Capture Readings
Waterproof
No
Maximum Operating Temperature
131 Degrees F
Test Current
0 mA to 40 mA
Display Type
Digital
Minimum Ground Resistance Measurement
0.01 ohm
Maximum Earth Voltage
600 V
Number of Records Stored
300
USB Data Download Included
No
Data Logger
Yes
CAT Safety Rating
CAT IV 600V
Battery Chemistry
Alkaline
Leakage Current Range
0.1mA to 40 A
Calibration Certificate
None
Minimum Operating Temperature
-4 Degrees F
Number of Batteries Required
1
Maximum Operating Temperature
131 Degrees F
Leakage Current Measurement - Maximum
40 A
Includes Batteries
Batteries Included
Leakage Current Measurement - Minimum
0.1 mA
Calibration Certificate Included
No Certification Included
Data Output Type
No Output
Ground Testing Functions
Stakeless
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Earth Ground Tester, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate None, Current Accuracy +/-1.5 Percent to +/-10 Percent, Data Logger Yes, Display Type Digital, Dustproof No, IP Rating Not Applicable, Jaw Capacity 1.4 in, Leakage Current Range 0.1mA to 40 A, Maximum Earth Voltage 600 V, Maximum Ground Resistance Measurement 1,500 ohm, Measurement Connectors One Clamp, Minimum Ground Resistance Measurement 0.01 ohm, Number of Records Stored 300
