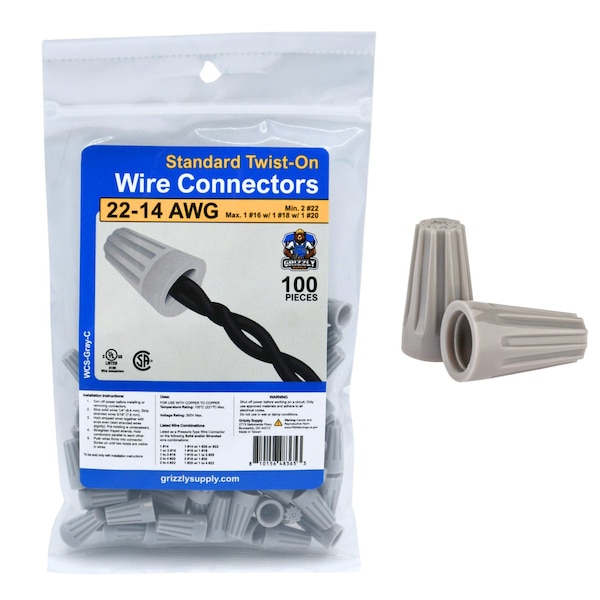

Standard Screw-On Wire Connector, 22-14 AWG, 300V, Thermoplastic, Gray 100PK
- Mfr # WCS-Gray-C
- Zoro # G824302660
product price:Â
$
6.99
/ea
Sold in multiples of 2 for
$13.98
Key Features
Insulation Material
Thermoplastic
Material
Steel
Termination Style
Twist-On
For Use With
Cables/Wires
Maximum Conductors
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- WCS-Gray-C
- Zoro #
- G824302660
- UPC #
- 810156483653
- Country of Origin
- Taiwan, Province of China
- Insulation Material
- Thermoplastic
- Material
- Steel
- Termination Style
- Twist-On
- For Use With
- Cables/Wires
- Maximum Conductors
- 3
- Wire Connector Style
- Standard
- UL 94 Flammability Rating
- V-2
- Item
- Wire Connector
- Maximum Operating Temperature
- 105 Degrees C
- Application
- General Purpose
- Maximum Voltage
- 300 V
- Standards
- UL Listed, CSA Certified
- Color
- Gray
- Finish
- Zinc Plated
- RoHS Compliant
- Yes
Dimensions
- Minimum Wire Size
- 22 AWG
- Maximum Wire Size
- 14 AWG
- Length
- 0.58 in
Description
The Gray Standard Screw-On Wire Connector from Grizzly Supply provides a secure, insulated splice for electrical wiring connections, threading onto twisted wire ends to protect and insulate the joint. Its compact twist-on cap threads onto the twisted wire ends quickly, with no tools or additional hardware needed. It's rated for a 22-14 AWG wire range at up to 300V, holds up to 3 copper conductors, and is well suited for light fixture and house wiring applications. The connector uses a zinc-plated steel contact for a solid electrical connection, and is molded from color-coded thermoplastic for quick gauge identification, carrying a UL 94 V-2 flame rating. Suitable for indoor use in residential and light commercial wiring, it operates reliably up to 105 Degrees C (221 Degrees F), and is UL Listed, CSA Certified, and RoHS Compliant. Sold in a pack of 100.
