Standard Screw-On Wire Connector, 22-8 AWG, 600V Max, Thermoplastic, Yellow 100PK

  • Mfr # WCS-Yellow-C
  • Zoro # G624302617
product price:
$
10.49
/ea
Sold in multiples of 2 for $20.98

Key Features

Length
0.93 in
Maximum Operating Temperature
105 Degrees C
Wire Connector Style
Standard
Termination Style
Twist-On
Maximum Wire Size
8 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WCS-Yellow-C
Zoro #
G624302617
UPC #
810156483714
Country of Origin
Taiwan, Province of China
Maximum Operating Temperature
105 Degrees C
Wire Connector Style
Standard
Termination Style
Twist-On
Maximum Conductors
4
RoHS Compliant
Yes
Application
General Purpose
Item
Wire Connector
Maximum Voltage
600 V (Bldg Wiring)/ 1000 V (Signs/Luminaires)
For Use With
Cables/Wires
Insulation Material
Thermoplastic
Standards
UL Listed, CSA Certified
UL 94 Flammability Rating
V-2
Finish
Zinc Plated
Color
Yellow
Material
Steel

Dimensions

Length
0.93 in
Maximum Wire Size
8 AWG
Minimum Wire Size
22 AWG

Description

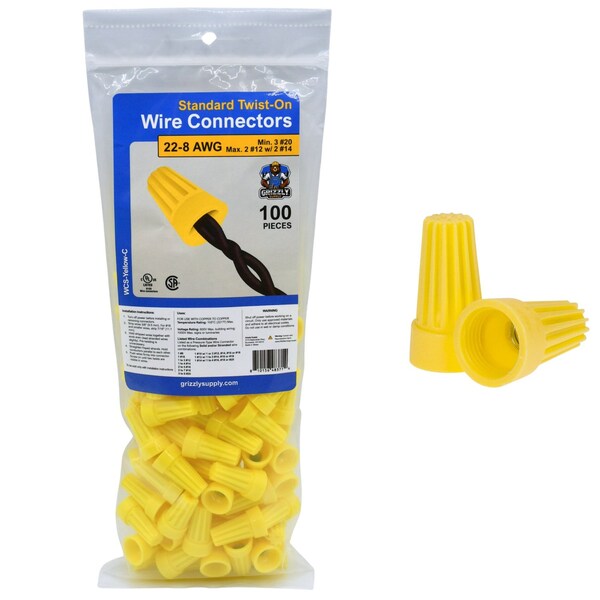

The Yellow Standard Screw-On Wire Connector from Grizzly Supply provides a secure, insulated splice for electrical wiring connections, threading onto twisted wire ends to protect and insulate the joint. Its compact twist-on cap threads onto the twisted wire ends quickly, with no tools or additional hardware needed. It's rated for a 22-8 AWG wire range at up to 600V Max, holds up to 4 copper conductors, and is well suited for light fixture and house wiring applications. The connector uses a zinc-plated steel contact for a solid electrical connection, and is molded from color-coded thermoplastic for quick gauge identification, carrying a UL 94 V-2 flame rating. Suitable for indoor use in residential and light commercial wiring, it operates reliably up to 105 Degrees C (221 Degrees F), and is UL Listed, CSA Certified, and RoHS Compliant. Sold in a pack of 100.
