  11. LED WORK LAMP, MULTI-VOLT, FAR, PENDANT MN
Shop All Automotive Back Up Alarms
Grote

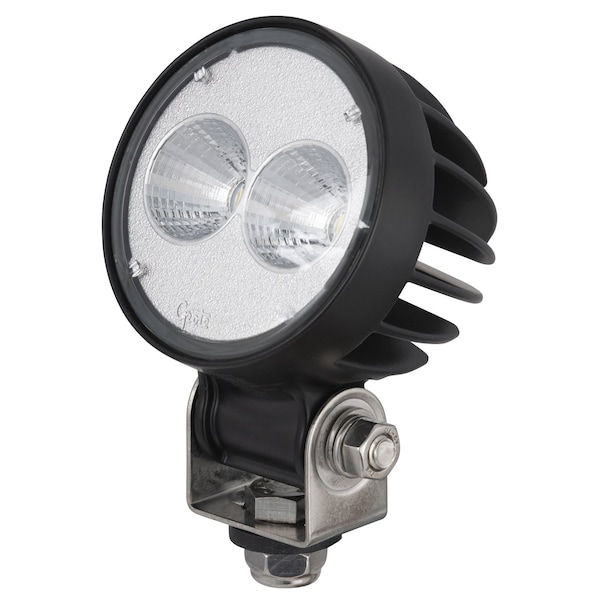

LED WORK LAMP, MULTI-VOLT, FAR, PENDANT MN

product price: $115.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 10 to 48V
  • Lens Shape - Vehicle Lighting Round
  • Lamp Type LED
  • Light Output 1,790 lm
  • Lighting Technology - Vehicle Lighting LED
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 4 1/4 in
Width - Vehicle Lighting 2 13/16 in
Diameter - Vehicle Lighting 3 1/4 in
Length - Vehicle Lighting 3 1/4 in
Overall Depth 3 1/4 in
Overall Diameter 3 in

Details

Item Vehicle Work Light
Voltage 10 to 48V
Lens Shape - Vehicle Lighting Round
Lamp Type LED
Light Output 1,790 lm
Lighting Technology - Vehicle Lighting LED
Housing Color Black
Current Drawn 17.5 W
Wiring Connection - Vehicle Lighting Pigtail
Housing Material Aluminum
Mounting Pendant
Mounting - Vehicle Lighting Bracket
Includes Pigtail
Standards CE, ISO 60068-2-6:1996, ISO16750-4:2003, SAE J1455, SAE J2139, SAE J575
Lens Design Hard Coated Polycarbonate, UV Resistant
Lumens - Vehicle Lighting 1,790 lm
Features 1800 Lumen, Far Flood Pattern, Includes Pigtail, Pendant Mount
Lens Material Polycarbonate
Material polycarbonate
Power Source DT06-2S
Operating Temp. -40 Degrees to 131 Degrees F
Lighting Technology LED
Wattage 18 W
Compatible Vehicle Type Universal
IP Rating IP69K
Vehicle Class 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Compatible Electrical Connection Manufacturer Model Number 68610
Maximum Brightness 1,800 lm
Mount Type Bracket
Electrical Connection Pigtail
Mount Style Surface
Current 0.36 to 1.75 A
Installation Type Removable
Series Trilliant T26
Beam Type Flood
Includes Electrical Connection Electrical Connection Included
Head Shape Round

Description

Vehicle Work Light, IP Rating IP69K, Beam Type Flood, Overall Depth 3 1/4 in, Installation Type Removable, Mount Type Bracket, Operating Voltage 10-48V DC, Lighting Technology LED, Overall Diameter 3 in, Overall Height Not Applicable, Head Shape Round, Overall Width Not Applicable, Electrical Connection Pigtail, Vehicle Class 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Standards CE, ISO 60068-2-6:1996, ISO16750-4:2003, SAE J1455, SAE J2139, SAE J575
