Shop GROZ

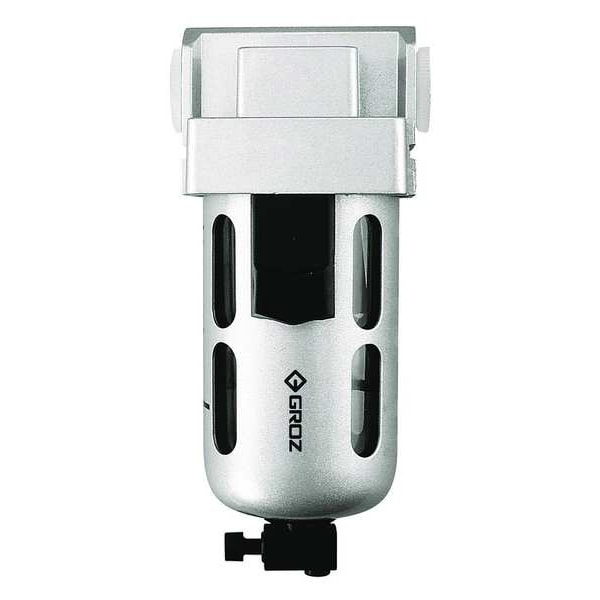

Air Filter, 3/8in NPT, 80 cfm, 145 psi

  • Mfr # F14923-S

  • Zoro # G0064788

product price:  $27.25
/ea

Key Features

Bowl Material - Air Treatment
Polycarbonate with Guard
Filter Rating - Air Treatment
40 micron
Housing Material
Aluminum
Max. Incoming Pressure - Air Treatment
145 psi
Max. Temp.
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F14923-S
Zoro #
G0064788
UPC #
-
Country of Origin
India

Dimensions

Bowl Size
1 oz.
Connection Size - Air Treatment
3/8 in NPT
Size
Intermediate
Size - Air Treatment
Intermediate
Overall Width
2 3/16 in
Overall Height
5 1/2 in
Bowl Size - Air Treatment
1.0 oz
Pipe Size
3/8" NPT
Air Outlet Size
3/8 in
Air Inlet Size
3/8 in
Overall Depth
2 3/16 in

Details

Bowl Material - Air Treatment
Polycarbonate with Guard
Filter Rating - Air Treatment
40 micron
Housing Material
Aluminum
Max. Incoming Pressure - Air Treatment
145 psi
Max. Temp.
140 Degrees F
For Removal Of
Dirt, Dust, Moisture
Max. Flow - Air Treatment
80 cfm
Max. Pressure
145 psi
Filter Rating
40 micron
Item - Air Filters
General Purpose Filter
Item
Compressed Air Filter
Bowl Material
Polycarbonate with Guard
Max. Flow
80 cfm
Filter Media
Compressed Air
Drain Type
Semi-Automatic
Replaces
Dynaflo 0425924, Jupiter 42007823
Includes
(1) Filter
Standards
RoHS Compliance
Weight
0.886 lb
Filter Efficiency
90 %
ISO Class
5
Maximum Flow @ 100 psi
80 cfm
Number of Air Inlets
1
Seal Material
Nitrile
Minimum Operating Pressure
7 psi
Maximum Operating Pressure
145 psi
Maximum Operating Temperature
140 Degrees F
Air Flow Direction
Left to Right
Body Material
Aluminum
For Substance Type
Air
Air Outlet Type
NPT
For Fluid Type
Compressed Air
Modular Connection
Modular Connection
Filter Type
Particulate
Air Outlet Gender
Female
Sight Gauge Included
No
Filter Bowl Guard Included
Yes
Filter Bowl Material
Polycarbonate
Air Inlet Gender
Female
Drain Included
Yes
Number of Air Outlets
1
Pressure Drop
4.5 psi
Filter Element Material
Bronze
Air Inlet Type
NPT
Filter Bowl Guard Material
Steel
Duty Rating
Intermediate Duty
Minimum Operating Temperature
32 Degrees F
Drain Part Compatibility
SC2004
Differential Pressure Indicator Included
No
Series
Intermediate Duty
Maximum Flow Rate
80 cfm
Filter Bowl Capacity
1.08 oz
System Location
Air Line
Gauge Included
No

Description

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 80 cfm, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 140 Degrees F, Overall Width 2 3/16 in, Overall Height 5 1/2 in, Drain Included Yes, Filter Bowl Material Polycarbonate, Drain Type Semi-Automatic, Series Intermediate Duty, Differential Pressure Indicator Included No, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
