  10. /
  11. Air Regulator, 1in NPT, 210 cfm, 220 psi
Shop All Filter, Regulator, Lubricator
Groz

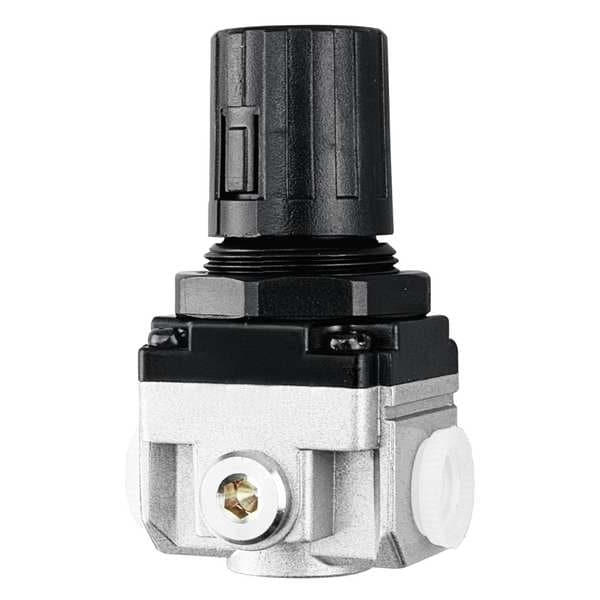

Air Regulator, 1in NPT, 210 cfm, 220 psi

original price: $124.85
7% off
new price: $114.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes (1) Air Regulator
  • Max. Pressure 220 psi
  • Overall Height 7 in
  • Overall Width 3 9/16 in
  • Valve Design Balanced
See all product information

Product Information

Dimensions

Overall Height 7 in
Overall Width 3 9/16 in
Overall Width - Regulators 3.54 in
Overall Width (Regulators) 3.54"
Pipe Size (Regulators) 1"
Overall Height (Regulators) 6.97"
Overall Height - Regulators 6.97 in
Pipe Size - Regulators 1 in
Air Inlet Size 1 in
Overall Depth 3 9/16 in
Air Outlet Size 1 in
Pressure Gauge Port Size 1/4 in

Details

Item Compressed Air Regulator
Includes (1) Air Regulator
Max. Pressure 220 psi
Valve Design Balanced
ISO Class 6
Max. Inlet Pressure (Regulators) 220 psi
Max. Temp. (Regulators) 140 Degrees F
Series Heavy Duty
Max. Flow - Regulators 210 cfm
Max. Flow (Regulators) 210 cfm
Adjustment Range - Regulators 7 to 145 psi
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Max. Inlet Pressure - Regulators 220 psi
Gauge Port 1/4 in NPT
Max. Temp. - Regulators 140 Degrees F
Replaces Dynaflo 0425921, Jupiter 82194200
Adjustment Range (Regulators) 7 to 145 psi
Body Material Aluminum
Air Outlet Gender Female
Seal Material Nitrile
Duty Rating Heavy Duty
Maximum Regulated Pressure 145 psi
Maximum Flow Rate 210 cfm
Modular Connection Modular Connection
Air Inlet Gender Female
Maximum Operating Temperature 140 Degrees F
Number of Air Outlets 1
Number of Air Inlets 1
System Location Air Line
Maximum Flow @ 100 psi 210 cfm
Air Outlet Type NPT
Pressure Gauge Port Type NPT
Sight Gauge Included No
For Fluid Type Compressed Air
Minimum Regulated Pressure 7 psi
Adjustment Mechanism Material Acetal
Air Inlet Type NPT
Pressure Gauge Included No
Pressure Gauge Port Gender Female
Regulator Type Relieving
Standards RoHS Compliance
For Substance Type Air
Adjustment Location Top
Maximum Operating Pressure 220 psi
Air Flow Direction Left to Right
Minimum Operating Temperature 32 Degrees F
Adjustment Mechanism Knob
Weight 3.306 lb
Pressure Drop 17 psi

Description

Compressed Air Regulator, Air Inlet Size 1 in, Air Inlet Type NPT, Maximum Flow Rate 210 cfm, Maximum Operating Pressure 220 psi, Maximum Operating Temperature 140 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 3 9/16 in, Adjustment Location Top, System Location Air Line, Series Heavy Duty, Adjustment Mechanism Material Acetal, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1 in, Air Outlet Type NPT
