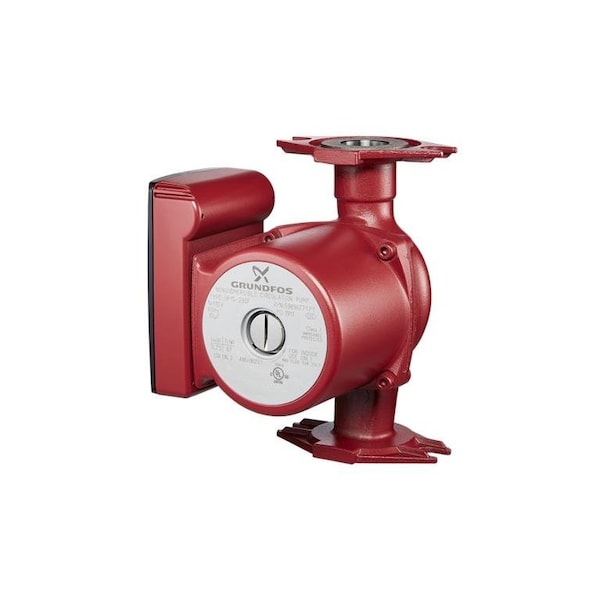

115V 60Hz 1/12 HP Circulator Pump
Mfr # 59896775
Zoro # G110331947
product price:Â
$
401.99
/ea
Free Shipping & Returns
Key Features
Voltage
115 V
Phase
1
Horsepower
0.0833 HP
Inlet/Outlet Size
0.75 in, 0.5 in
Pump Type
1-Speed Pump
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 59896775
- Zoro #
- G110331947
- UPC #
- 5700837414463
- Country of Origin
- United States
Dimensions
- Inlet/Outlet Size
- 0.75 in, 0.5 in
- Overall Width
- 7.25 in
- Overall Height
- 5.5 in
- Overall Length
- 5.875 in
Details
- Voltage
- 115 V
- Phase
- 1
- Horsepower
- 0.0833 HP
- Pump Type
- 1-Speed Pump
- Number of Speeds
- 1
- Max. GPM @ Head
- 9.7 ft
- Connection Type
- Union
- Pump Mount
- In-Line
- Application
- Residential Hot Water Recirculation
- Pump Flow (GPM)
- 20.5 gpm
- Hz
- 60 Hz
- Color
- Red
- Weight
- 4.64 lbs
- Replaces
- 59896127 (UP15-18SU)
- Temperature Range
- 36°F - 230°F
- Number of Poles
- 2
- Pump Housing Material
- Stainless Steel
- Maximum Operating Pressure
- 145 psi
Description
Grundfos UP B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP N have a stainless-steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings.
