Shop GRUNDFOS

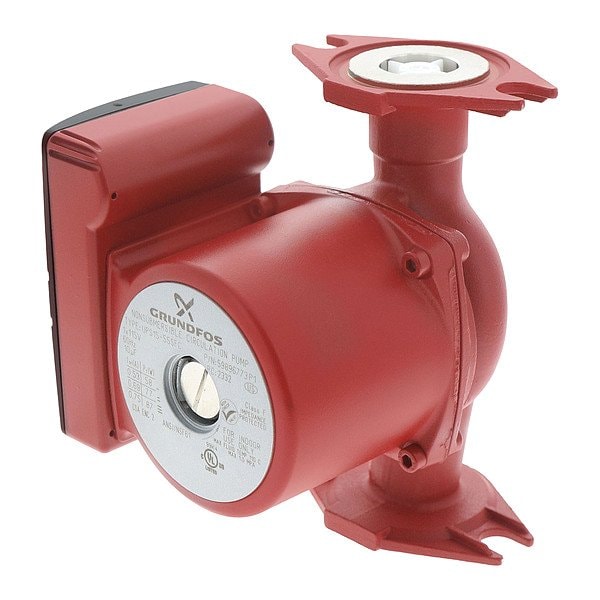

Circulating Pump, Flange, 1/8hp, 115VAC

  • Mfr # 59896773

  • Zoro # G010088088

product price:
$
984.00
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/8 hp
Series
UPS
Pump Type
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
59896773
Zoro #
G010088088
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
5.51 in
Face to Face Dimension
6 1/2 in
Overall Height
6.5 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/8 hp
Series
UPS
Pump Type
Standard
Number of Speeds
3
Maximum Feet of Head
18 ft
Connection Type
Flange
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Standards
CSA Certified, UL Listed
Amps
0.53/0.69/0.75 A
Application
Circulating
Impeller Material
Composite/PES
Motor Design
Permanent Split Capacitor
Series Family
15
Maximum Flow Rate @ 5 Feet of Head
22 gpm
Maximum Media Temperature
230 Degrees F
Compatible Media Type
Water
Maximum Operating Pressure
145.04 psi
Maximum Flow Rate @ 10 Feet of Head
18 gpm
Maximum Flow Rate @ 15 Feet of Head
12 gpm
Nameplate Voltage
115V AC
Flange or Union Included
Yes
Maximum Flow Rate @ 1 Feet of Head
24 gpm
Pump Housing Material
Stainless Steel
Minimum Media Temperature
35.6 Degrees F
For Use With Potable Systems
Yes
Frequency
60 Hz
Rotor Type
Wet
Electrical Connection Type
Hardwired
For Media Type
Clear Water
Mounting Orientation
Horizontal
Includes Timer
No Timer Included
Includes Union
No Union Included
Full Load Current
0.53/0.69/0.75 A
ANSI Flange Class
Class 150
Pump Casing Material
Stainless Steel
Number of Flange Mounting Holes
2
Connection Standard
Flange
Includes Flange
Flange Included
Priming
Self-Priming
Operating Pressure - Maximum
145 psi
Pump Construction
2-Piece
Flow Rate - Maximum
25 gpm
Thermostat Included
No Thermostat Included
Operating Modes
Constant Pressure
Requires Dedicated Return Line
No Dedicated Return Line Required
Pump Technology
Centrifugal
For Low Lead Compliance Level
CE
Number of Pump Heads
1
Media Temperature - Minimum
35.6 Degrees F
Media Temperature - Maximum
230 Degrees F
Feet of Head - Maximum
18 ft
Includes Volute
Volute Included

Description

Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/8 hp, Maximum Feet of Head 18 ft, Maximum Flow Rate @ 10 Feet of Head 18 gpm, Maximum Flow Rate @ 50 Feet of Head Not Applicable, Maximum Flow Rate @ 15 Feet of Head 12 gpm, Maximum Flow Rate @ 1 Foot of Head 24 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single

Restrictions
