  5. Pump, 1/15 HP, 115V, Stainless Steel

This item is Discontinued.

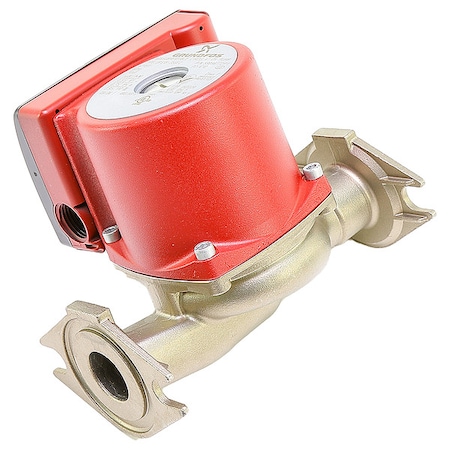

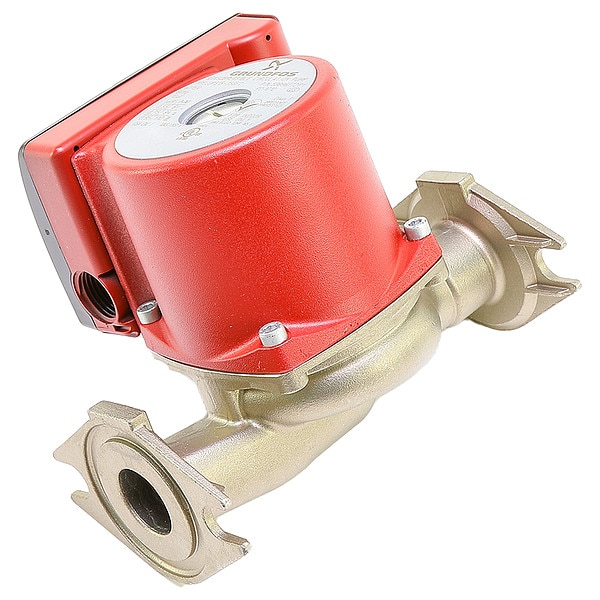

Grundfos Pump, 1/15 HP, 115V, Stainless Steel 59896772

Pump, 1/15 HP, 115V, Stainless Steel (Discontinued)

  • Mfr # 59896772
  • Zoro # G7763038
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
59896772
Zoro #
G7763038
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Width
5 1/2 in
Length
6 1/2 in
Overall Length
6.5 in
Overall Width
5.5 in
Inlet/Outlet Size
GF 15/26
Face to Face Dimension
6 1/2 in
Compatible Intake Pipe Size
9/16 in
Manufacturer Warranty Length
3 yr
For Inlet Pipe Diameter
9/16 in

Details

Item
Circulator Pump
For Use With
Potable Systems
Fits Brand
Grundfos
Features
3-Speed, Maintenance Free
Includes
(2) Gaskets
Compliance
Certified For Use in Potable Water Applications in CA and VT
HP
1/6
Voltage
115V AC
Standards
AISI 304, CSA Certified, DIN W.-Nr. 1.4301, UL Listed
Amps
0.55/0.75/0.95 A
Impeller Material
Composite/PES
Shaft Material
Aluminum Oxide Ceramic
Phase
Single
RPM
3420
Housing Material - Pumps
Stainless Steel
Series
UP
Max. Temp.
165 Degrees F
Connection Type
Flange
Best Efficiency GPM @ Head
8 gpm @ 6.3 ft
Flange/Union Included
No
Max. GPM @ Head
19 gpm @ 1 ft
Shut-Off
11.1 ft
Max. Operating Pressure
145 psi
Loop Configuration
Open
Min. GPM @ Head
2 gpm @ 10 ft
Connection Style
Flange
Phase - Pumps
1
Voltage - Pumps
115V
Mechanical Seal
Wet Rotor
Drive Type
Direct
Thermal Protection
Auto
Number of Speeds
3
Nameplate Voltage
115 V
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Maximum Flow Rate @ 5 Feet of Head
10 gpm
Flange or Union Included
No
Frequency
60 Hz
Maximum Operating Pressure
145 psi
Maximum Feet of Head
15 ft
Maximum Flow Rate @ 10 Feet of Head
2 gpm
Maximum Media Temperature
165 Degrees F
Compatible Media Type
Water
Maximum Flow Rate @ 15 Feet of Head
2 gpm
For Use With Potable Systems
No
Horsepower
1/15 hp
Pump Type
Multi-Speed
Minimum Media Temperature
35 Degrees F
Pump Housing Material
Stainless Steel
Maximum Flow Rate @ 1 Feet of Head
17 gpm
Includes Flange
No Flange Included
Media Temperature - Maximum
165 Degrees F
Feet of Head - Maximum
15 ft
For Low Lead Compliance Level
CE
Full Load Current
0.55/0.75/0.95 A
Pump Casing Material
Stainless Steel
Media Temperature - Minimum
35 Degrees F
Connection Standard
Flange
Operating Pressure - Maximum
145 psi

Description

Circulator Pump, Compatible Intake Pipe Size 9/16 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 1/15 hp, Maximum Feet of Head 15 ft, Maximum Flow Rate @ 10 Feet of Head 2 gpm, Maximum Flow Rate @ 1 Foot of Head 17 gpm, Nameplate Voltage 115 V, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Maximum Flow Rate @ 5 Feet of Head 10 gpm, Series UP, Amps 0.55/0.75/0.95 A, Compatible Media Type Water

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
