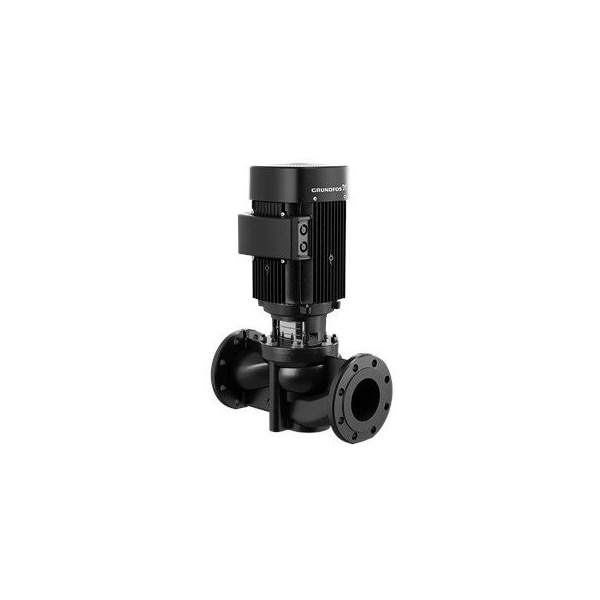

TP40-160/2 115V 1Ph 3/4HP Pump
- Mfr # 96411798
- Zoro # G609978141
product price:Â
$
5,043.99
/ea
Free Shipping & Returns
Key Features
Hz
60 Hz
Standards
Ul Recognized Component, Csa
Insulation class
B
Rated speed
3450 Rpm
Actual impeller diameter
86 Mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 96411798
- Zoro #
- G609978141
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Actual impeller diameter
- 86 Mm
Details
- Hz
- 60 Hz
- Standards
- Ul Recognized Component, Csa
- Insulation class
- B
- Rated speed
- 3450 Rpm
- Motor type
- Baldor, Tefc
- Maximum operating pressure
- 10 Bar
- SF current
- 11,4/6-5,7 A
- Liquid temperature range
- -15 .. 140 °C
- Pump housing
- Cast Iron
- Rated current
- 8 A
- Rated power - P2
- 0.55 Kw
- Pipe connection
- 1 1/2in
- Pumped liquid
- Water
- Density
- 998.2 Kg/M³
- Rated voltage
- 1 X 115/208-230 V
- liquid temperature
- 20 °C
- Rated flow
- 13.5 M³/H
- Maximum ambient temperature
- 40 °C
- Rated head
- 10.9 M
- Impeller
- Stainless Steel
