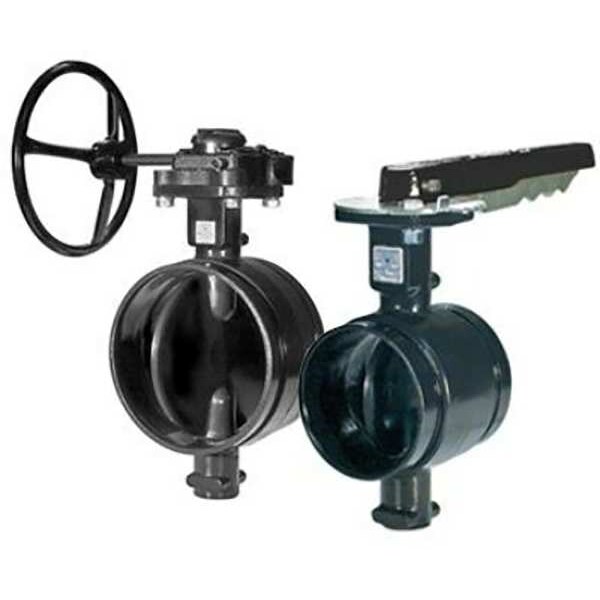

Butterfly Valve
- Mfr # 7005502780
- Zoro # G900716015
product price:Â
$
549.99
/ea
Free Shipping & Returns
Key Features
Style
Grooved
Body Material
Ductile Iron
Pipe Size
2 in
Max. Water Pressure
300 psi
Handle Type
Lever
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7005502780
- Zoro #
- G900716015
- UPC #
- -
- Country of Origin
- United States
- Item
- Butterfly Valve
- Style
- Grooved
- Body Material
- Ductile Iron
- Max. Water Pressure
- 300 psi
- Handle Type
- Lever
- Compliance
- ASTM A 536, ASTM D2000
- Disc Material
- Ductile Iron
- Liner Material
- EPDM
- Standards
- NSF/ANSI 61
- Temp. Range
- -40 Degrees to 230 Degrees F
- Maximum Pressure - Operating
- 300 psi
- Number of Flange Bolt Holes
- 3
- Operating Temperature - Maximum
- 230 Degrees F
- NSF Certifications for Food and Drinking Water
- NSF 61
- Includes Disc Position Indicator
- Disc Position Indicator Included
- Operating Temperature - Minimum
- -40 Degrees F
- Vacuum Service Rating
- Not Rated
- Stem Material
- 416 Stainless Steel
- Connection Type
- Clamp
- Coefficient of Volume (Cv)
- 158
- 3-A Standard Compliance
- Not Rated
- Number of Stop Positions
- 10
- For Media
- Chemicals, Oil, Water
- Valve Series
- AE7724-3
Dimensions
- Pipe Size
- 2 in
- Bolt Circle Dia.
- 3 in
- Nominal Valve Size
- 2 in
- Handle Length
- 5 in
Description
Butterfly Valve, Grooved Style, Body Material Ductile Iron, Max. Water Pressure 300 psi, Pipe Size 2 in, Temp. Range -40 Degrees to 230 Degrees F, Liner Material EPDM, Disc Material Ductile Iron, Handle Type Lever, Bolt Circle Dia. 3 in, ASTM A 536, ASTM D2000
Restrictions
