  11. Check Valve, 7.25 in Overall L

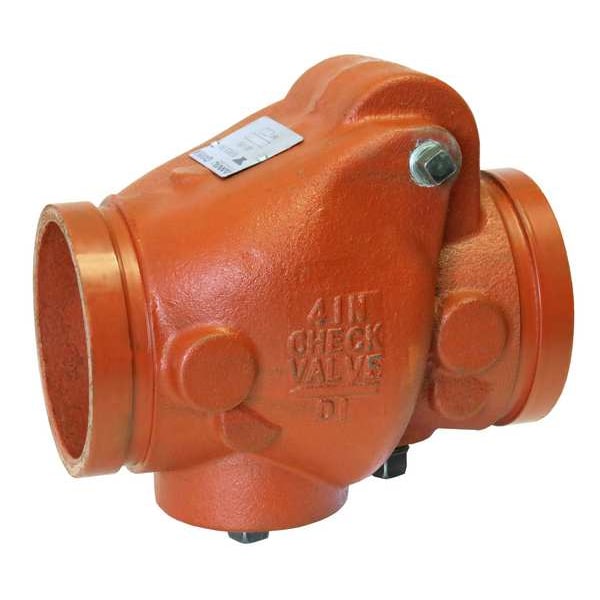

Gruvlok Check Valve, 7.25 in Overall L 2200750046 - main

Check Valve, 7.25 in Overall L

  • Mfr # 2200750046

  • Zoro # G500716057

product price: $651.99
/ea
Free Shipping & Returns

Key Features

Connection Type
Grooved x Grooved
Body Material
Ductile Iron
Overall Height
4 1/2 in
Spring Material
302 Stainless Steel
Cracking Pressure
500 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2200750046
Zoro #
G500716057
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 1/2 in
Overall Length
7.25 in
Length
7 1/4 in
Pipe or Tube Size
2 1/2 in
Connection Size - Side 2
2 1/2 in
Nominal Valve Size
2 1/2 in
Connection Size - Side 1
2 1/2 in

Details

Connection Type
Grooved x Grooved
Body Material
Ductile Iron
Spring Material
302 Stainless Steel
Cracking Pressure
500 psi
Standards
cULus Listed, FM
Cracking Pressure - Check Valves
500 psi
Body Material - Valves
Ductile Iron
Seal Material
EPDM
Flow Design
Single
Application - Valves
General Purpose
Item
Check Valve
Item - Check Valves
Check Valve
Flow
700 gpm
Seal Material - Check Valves
EPDM
Min. Temp. - Valves
-40 Degrees F
Spring Material - Check Valves
302 Stainless
Connection Type - Check Valves
Flanged Wafer x Flanged Wafer
Flow - Valves
700 gpm
Max. Water Pressure - Valves
300 psi
Full Flow - Valves
Yes
Seat Material
304 Stainless Steel
Mechanism and Body Design
Inline Wafer
Max. Temp. - Valves
230 Degrees F
Seat Material - Check Valves
ASTM
Mounting Orientation
Horizontal
Check Mechanism Material
304 Stainless Steel
Connection Gender - Side 2
Female
Check Mechanism
Swing
Connection Gender - Side 1
Female
Valve Ways
2-Way
Silent Check
Standard
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
230 Degrees F
Valve Body Style
Inline
Includes Counterweight
No Counterweight
Connection Type - Side 2
Grooved
3-A Standard Compliance
Not Rated
Connection Type - Side 1
Grooved
Maximum Pressure - Operating
300 psi
For Media
Alkaline, Chemicals, Dilute Acids, Oil-Free Air, Water
Operating Temperature - Minimum
-40 Degrees F
Valve Series
7800
Maximum Pressure - Steam
Not Rated

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves Ductile Iron, Pipe or Tube Size 2 1/2 in, Connection Type Grooved x Grooved, Cracking Pressure 500 psi, Mounting Orientation Horizontal, Seal Material EPDM, Max. Temp. - Valves 230 Degrees F, Min. Temp. - Valves -40 Degrees F, Max. Water Pressure - Valves 300 psi, Seat Material 304 Stainless Steel, Spring Material 302 Stainless Steel, Flow - Valves 700 gpm, Full Flow - Valves Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
