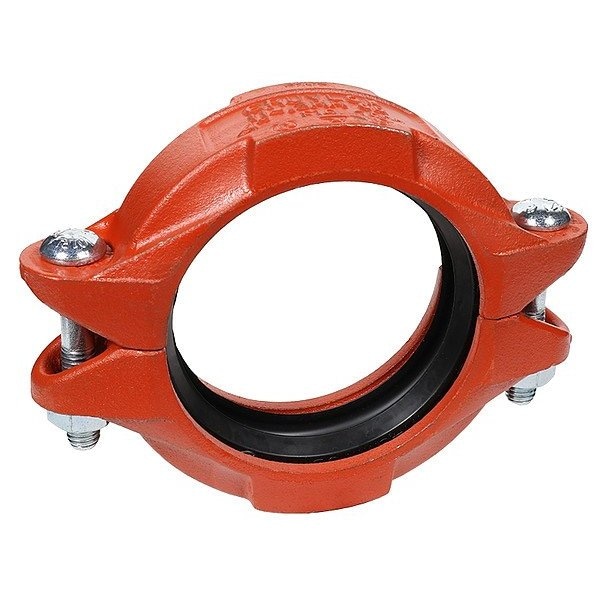

Clamp, DI, Grooved1-1/2", Grooved1-1/2"
Mfr # 0390092443
Zoro # G522730857
product price:Â $53.79
/eaKey Features
Maximum Operating Pressure
600 psi
Overall Length
4 5/8 in
Series
7000
Deflection Angle
1.9 Degrees
Assembly Type
Bolted
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
0390092443
Zoro #
G522730857
UPC #
690291111099
Country of Origin
United States
Dimensions
Overall Length
4 5/8 in
Fitting Side B Nominal Pipe Size
1 1/2 in
Fitting Side B Outside Diameter
1 57/64 in
Fitting Side A Outside Diameter
1 57/64 in
Fitting Side A Nominal Pipe Size
1 1/2 in
Details
Maximum Operating Pressure
600 psi
Series
7000
Deflection Angle
1.9 Degrees
Assembly Type
Bolted
Fitting Side B Type
Grooved
Compatible Seal Type
Grade E
Application
Air, Chemicals, Acids
Material Grade
A536 65-45-12
Seal Material
EPDM
Standards
FM Approved, IAPMO UPC, LPCB, NSF/ANSI 61, UL Listed, VDS
Color Code Stripe
Green
Includes Seal
Yes
For Pipe Schedule
Schedule 10, Schedule 40
Finish/Coating
Galvanized
Item
Clamp Coupling
Fitting Side A Type
Grooved
Description
Clamp,DI,Grooved1-1/2",Grooved1-1/2"
