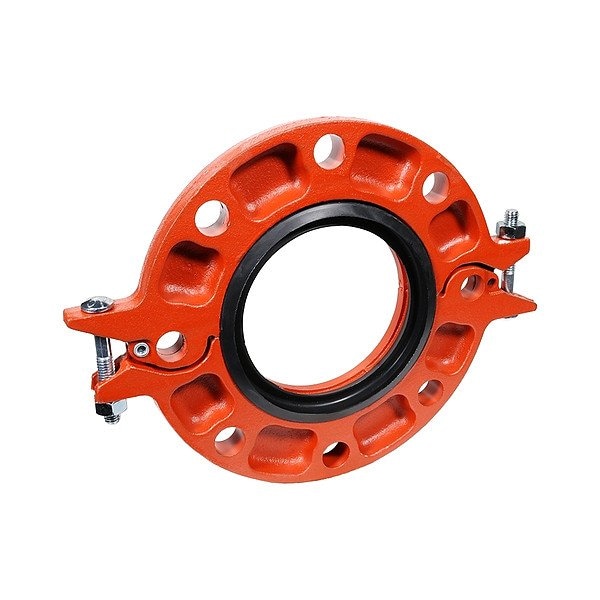

Flange, Ductile Iron, Grooved, 10 in
- Mfr # 0390210144
- Zoro # G822732353
product price:Â
$
413.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Flange
Pipe Connection Type
Grooved
Minimum Operating Temperature
-40 Degrees F
Gasket Material
EPDM
Maximum Operating Pressure
300 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 0390210144
- Zoro #
- G822732353
- UPC #
- 690291114823
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 5 in
- Flange Outside Diameter
- 10 in
- Wire Rope Length
- 12 1/2 in
- Bolt Circle Diameter
- 8 1/2 in
- Bolt Hole Diameter
- 7/8 in
- Flange Thickness
- 7/8 in
- Overall Length
- 12 1/2 in
- Length
- 12 1/2 in
Details
- Specific Fitting Shape
- Flange
- Pipe Connection Type
- Grooved
- Minimum Operating Temperature
- -40 Degrees F
- Gasket Material
- EPDM
- Maximum Operating Pressure
- 300 psi
- Number of Bolt Holes
- 8
- Standards
- ASTM A536, ASTM A563, cULus Listed, FM Approved, IAPMO UPC, LPCB, NSF/ANSI CAN 61 Drinking Water
- Series
- 533
- Material Grade
- A536 65-45-12
- Connection Surface
- Flat
- Finish/Coating
- Galvanized
- Maximum Operating Temperature
- 230 Degrees F
- Application
- Chemicals, Acids, Air
- Gravity Flow
- Pressure
- Item
- Metal Pipe Flange
- Class
- Class 125/150
Description
Flange, Flat, 5 in Nominal Pipe Size, 10 in Flange Outside Diameter, 7/8 in Flange Thickness, 12 1/2 in Overall Length, Ductile Iron, Galvanized, A536 65-45-12, Class Class 125/150, For Pipe Schedule Not Applicable, 300 psi Maximum Operating Pressure, Number of Bolt Holes 8, 8 1/2 in Bolt Circle Diameter, 7/8 in Bolt Hole Diameter
