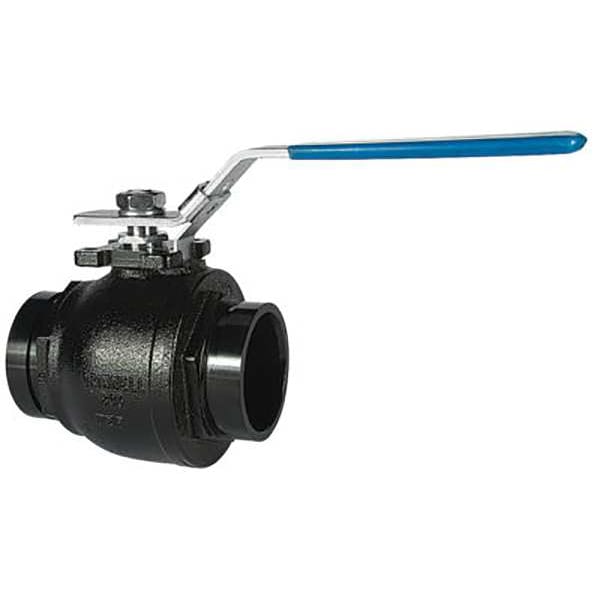

Gruvlok Manual 2-Way Ball Valve, Grooved, Iron 1330026170 - main

Manual 2-Way Ball Valve, Grooved, Iron

  • Mfr # 1330026170

  • Zoro # G000715994

product price: $260.29
/ea
Free Shipping & Returns

Key Features

Ball Material
304 Stainless Steel
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1330026170
Zoro #
G000715994
UPC #
066242897587
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
2 in
Overall Length
2 in
Handle Height
3.75 in
Handle Length
7 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in

Details

Ball Material
304 Stainless Steel
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
Connection Type
Grooved x Grooved
Item
Manual Two-Way Ball Valve
Stem Material
Nickel-Plated Carbon Steel
Seal Material
PTFE
Features
The Handle is Provided with a Device for Padlocking in Either the Open or Closed Position, the Valves are Furnished with Grooved Ends for Use with Gruvlok Grooved Couplings
Hose I.D.
1 1/2 in
Max. Pressure
1,000 PSI
Handle Type
Lever
Seat Material
RPTFE
Compliance
ISO 5211, MSS SP-110, MSS SP-72
Body Material
Ductile Iron
Handle Material
Zinc-Plated Carbon Steel
Standards
ASTM A 536
Connection Type - Side 2
Grooved
Connection Type - Side 1
Grooved
Maximum Pressure - Steam
1,000 PSI
Handle - Locking
Locking
3-A Standard Compliance
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Valve Series
BV835

Description

Manual Two-Way Ball Valve, Body Material Ductile Iron, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 1,000 psi, Maximum Pressure - Combustible Gas Not Rated, Ball Material 304 Stainless Steel, Ball Port Style Standard Port, Handle - Locking Locking, Handle Type Lever, Connection Size - Side 1 2 in, Valve Ways 2-Way

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
