Shop GS TOOLING

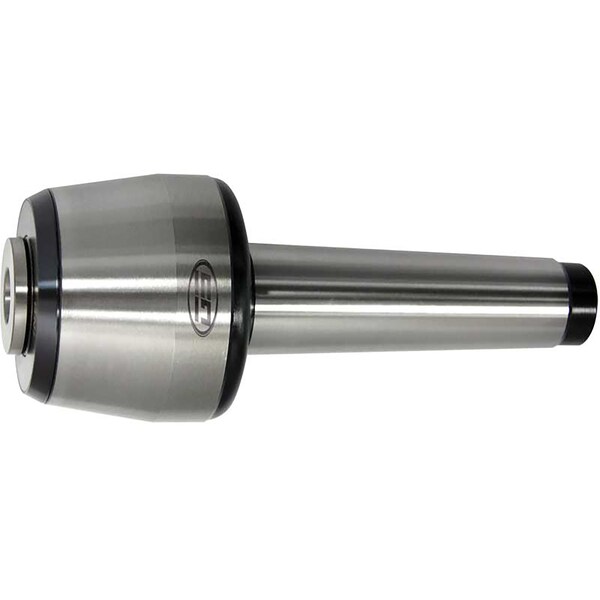

GS MT4 Interchangeable Points Live Centre

  • Mfr # 311021
  • Zoro # G105896260
product price:
$
799.99
/ea
Free Shipping & Returns

Key Features

Features
Each holder comes with the 60º H insert. Other inserts available individually, Accuracy for centre inner diameter guaranteed to 0.003mm, Accuracy after point locking guaranteed to 0.005mm, Excellent for individual production of various workpieces through different insert shafts, Heat treated point to HRC 60±2, 4 types of standard point are available, Because of the insert shafts the allowed workpiece weight is limited, Mounting taper of point is 1/10, Drop forged (HRC 50±2) body, Shaft borehole for easy, efficient dismounting
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
311021
Zoro #
G105896260
UPC #
-
Country of Origin
Korea, Republic of
Features
Each holder comes with the 60º H insert. Other inserts available individually, Accuracy for centre inner diameter guaranteed to 0.003mm, Accuracy after point locking guaranteed to 0.005mm, Excellent for individual production of various workpieces through different insert shafts, Heat treated point to HRC 60±2, 4 types of standard point are available, Because of the insert shafts the allowed workpiece weight is limited, Mounting taper of point is 1/10, Drop forged (HRC 50±2) body, Shaft borehole for easy, efficient dismounting

Description

Each holder comes with the 60o H insert. Other inserts available individually. - Accuracy for centre inner diameter guaranteed to 0.003mm - Accuracy after point locking guaranteed to 0.005mm - Excellent for individual production of various workpieces through different insert shafts - Heat treated point to HRC 60±2 - 4 types of standard point are available - 4-Bearing System: a double row angular contact bearing, a radial ball bearing, and a rear needle roller bearing combine to provide excellent rigidity and superior performance - Because of the insert shafts the allowed workpiece weight is limited - Mounting taper of point is 1/10 - Drop forged (HRC 50±2) body - Shaft borehole for easy, efficient dismounting
