Shop GUARDAIR
See all product information
Create Account

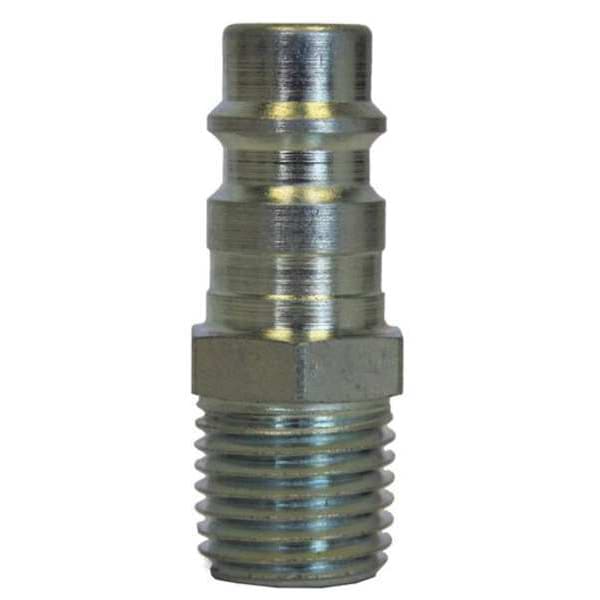

Coupler Plug, (M)NPT, 1/4, Steel
Mfr # 14H03M
Zoro # G4832107
product price:
$
5.69
/ea
Key Features
Interchange Type
Industrial
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 14H03M
- Zoro #
- G4832107
- UPC #
- 690773001344
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 1/2 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 5/8 in
- Wire Rope Length
- 1 1/2 in
- Length
- 1 1/2 in
Details
- Item
- Quick Connect Hose Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 3,115 lpm
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- 40 Degrees to 250 Degrees F
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- For Hose I.D.
- 1/4 in
- Connection Thread Type
- NPT
Description
The GUARDAIR - 14H03M is a quick-connect coupling intended for tool-free connection and disconnection of hoses or equipment. It features a 1/4 inch size and a male hose fitting with 1/4" -18 NPT threads. Constructed from zinc-plated steel, this coupling is rated for a maximum working pressure of 300 psi and accommodates hose inner diameters of 1/4 inch. It is rated for operation within 40°F to 250°F. The coupling does not include an integrated valve and has a maximum flow rate of 3,115 liters per minute (as specified).
Key Features:
- Coupling component type: Plug (male half of the coupling set)
- Connection type: NPT threaded fitting for hose attachment
- Body and coupling size: 1/4 inch nominal diameter
- Hose fitting gender: Male
- Material: Zinc-plated steel construction
- Max working pressure: is rated for 300 psi maximum working pressure at 70°F
- Max flow rate: 3,115 lpm
- Operating temperature: 40°F to 250°F
- Overall length: 1.5 inches
- Max outside diameter: 5/8 inch
- Not barbed (smooth connection interface)
