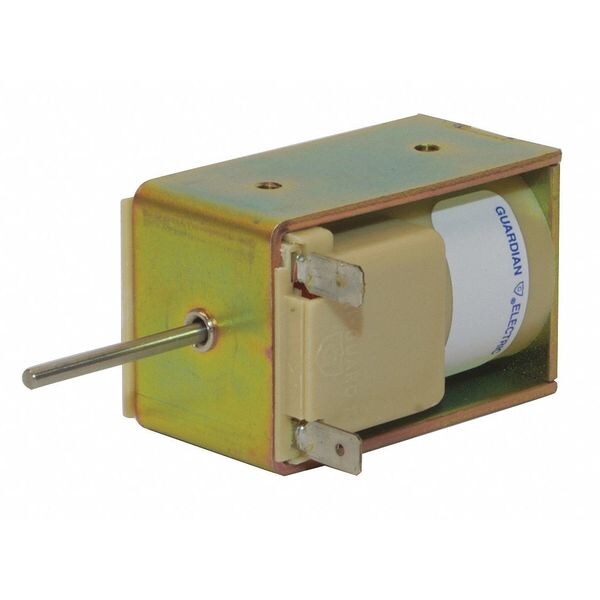

Solenoid, Box Frame, 1/8 - 1 in, Continuous

GUARDIAN ELECTRIC| Zoro #: G1573433| Mfr #: 11P-C-120A

$33.64 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1573433 Mfr #: 11P-C-120A
Terminals: Solder LugMaterial of Construction: Steel
Standards: UL, RoHsSolenoid Type: Box Frame
Item: SolenoidCoil Insulation: Class 105
Seated Watts: 12Pull @ 1/8 In. Stroke: 107.0 oz.
Seated Amps: 225mAPull @ 1/4 In. Stroke: 60.0 oz.
Mounting Holes: 6-32 UNC -2B (4 Holes)Pull @ 3/8 In. Stroke: 40.0 oz.
Duty Cycle: ContinuousPull @ 1/2 In. Stroke: 30.0 oz.
Width: 15/16"Pull @ 5/8 In. Stroke: 15.0 oz.
Length: 1-13/16"Pull @ 3/4 In. Stroke: 12.0 oz.
Depth: 1-3/16"Coil Resistance: 225.0 ohm
Coil Volts: 120VACPull Force Range: 4.0 to 13.0 oz.
Stroke Range: 1/8" to 1"Pull @ 1 In. Stroke: 5.0 oz.
Body Length: 1-13/16"From Mounting Holes to Plunger Hole: 7/16"
Country of Origin (subject to change): United States

Product Description

Solenoid, Box Frame, Push, Stroke Range 1/8 to 1 In., Pull Force Range 4 to 13 oz., Dia. (In.) -, Width (In.) 15/16, Depth (In.) 1-3/16, Length (In.) 1-13/16, Body Length (In.) 1-13/16, Coil Volts 120AC, Seated Amps 225mA, Seated Watts 12, Coil Resistance (Ohms) 225, Coil Insulation Class 105, Terminals Solder Lug, Amps @ Max. Stroke -, Duty Cycle Continuous, Max. On Time (Minutes) -, Material of Construction Steel, Mounting Holes 6-32 UNC -2B (4 Holes)
