  6. Solenoid, Box Frame, 1/8 - 3/4 in, Continus

This item is Discontinued.

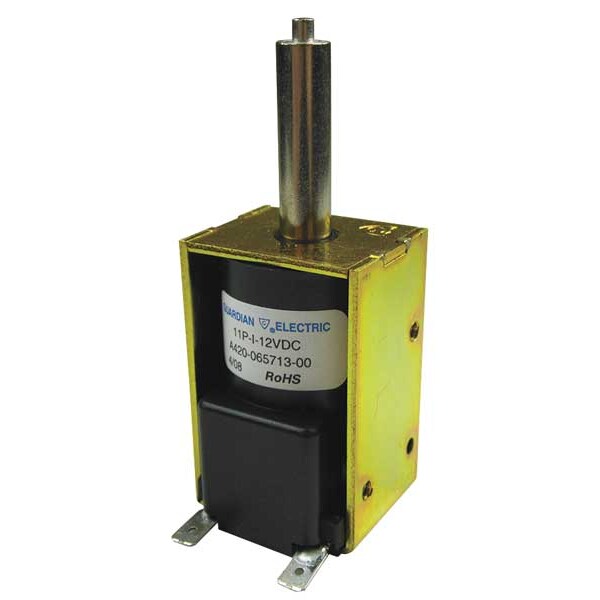

Guardian Electric Solenoid, Box Frame, 1/8 - 3/4 in, Continus 11P-C-24D

Solenoid, Box Frame, 1/8 - 3/4 in, Continus (Discontinued)

  • Mfr # 11P-C-24D
  • Zoro # G0555231
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11P-C-24D
Zoro #
G0555231
UPC #
-
Country of Origin
United States

Dimensions

Depth
1-3/16"
Length
1-13/16"
Body Length
1-13/16"
Width
15/16"

Details

Item
Solenoid
Solenoid Type
Box Frame, Push
Stroke Range
1/8" to 3/4"
Pull Force Range
1.0 to 21.0 oz.
Terminals
Solder Lug
Coil Volts
24VDC
Duty Cycle
Continuous
Pull @ 1/4 In. Stroke
20.0 oz.
Pull @ 3/4 In. Stroke
3.0 oz.
Pull @ 5/8 In. Stroke
5.0 oz.
From Mounting Holes to Plunger Hole
5/8"
Mounting Holes
6-32 UNC -2B (4 Holes)
Coil Insulation
Class 105
Material of Construction
Steel
Seated Watts
6.5
Pull @ 1/8 In. Stroke
60.0 oz.
Coil Resistance
93.1 ohm
Pull @ 1 In. Stroke
1.0 oz.
Pull @ 1/2 In. Stroke
13.0 oz.
Pull @ 3/8 In. Stroke
18.0 oz.
Standards
UL, RoHs
Seated Amps
258mA

Description

Solenoid, Box Frame, Push, Stroke Range 1/8 In. to 3/4 In., Pull Force Range 1.0 to 21.0 oz., Width 15/16 In., Depth 1-3/16 In., Length 1-13/16 In., Body Length 1-13/16 In., Coil Volts 24VDC, Seated Amps 258mA, Seated Watts 6.5, Coil Resistance 93.1 ohm, Coil Insulation Class 105, Terminals Solder Lug, Duty Cycle Continuous, Material of Construction Steel, Mounting Holes 6-32 UNC -2B (4 Holes), 5/8 In. From Mounting Holes to Plunger Hole, Standards UL, RoHs
