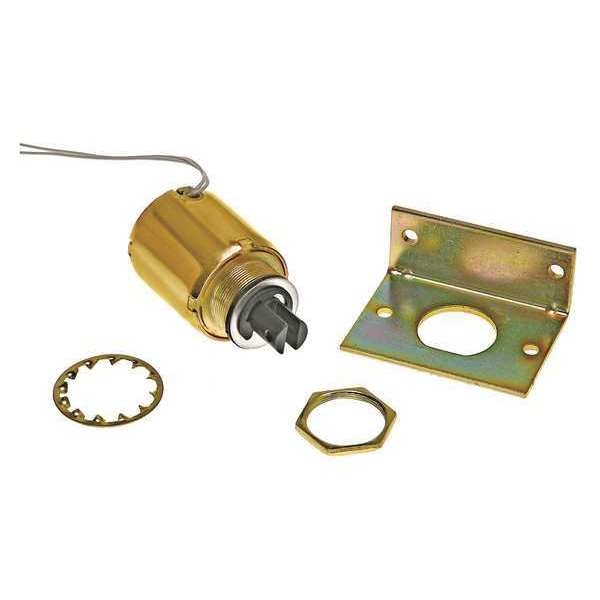

Solenoid, Tubular, 1/8 - 3/8 in, Continuous

GUARDIAN ELECTRIC| Zoro #: G2340511| Mfr #: T6X12-C-12D

$25.67 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2340511 Mfr #: T6X12-C-12D
Material of Construction: SteelStandards: UL, RoHs
Solenoid Type: TubularTerminals: 6.5" Leads
Mounting Holes: Mounting Bracket (2 Holes)Item: Solenoid
Coil Insulation: Class 105Pull @ 1/4 In. Stroke: 8.0 oz.
Seated Amps: 379mAPull @ 3/8 In. Stroke: 7.0 oz.
Duty Cycle: ContinuousLength: 1-9/16"
Dia.: 3/4"Coil Volts: 12VDC
Coil Resistance: 31.7 ohmPull Force Range: 2.0 to 9.0 oz.
Stroke Range: 1/8" to 3/8"Body Length: 1-9/16"
Pull @ 1/8 In. Stroke: 9.0 oz.Seated Watts: 4.8
Country of Origin (subject to change): United States

Product Description

Solenoid, Tubular, Dia. 3/4 In., Body Length 1 9/16 In., Length 1 9/16 In., Coil Volts 12DC, Seated Amps 379mA, Seated Watts 4.8, Coil Resistance (Ohms) 31.7, Coil Insulation Class 105, Terminals 6.5 In Leads, Duty Cycle Continuous, Material of Construction Steel, Mounting Holes MOUNTING BRACING (2 HOLES), Standards UL, RoHs
