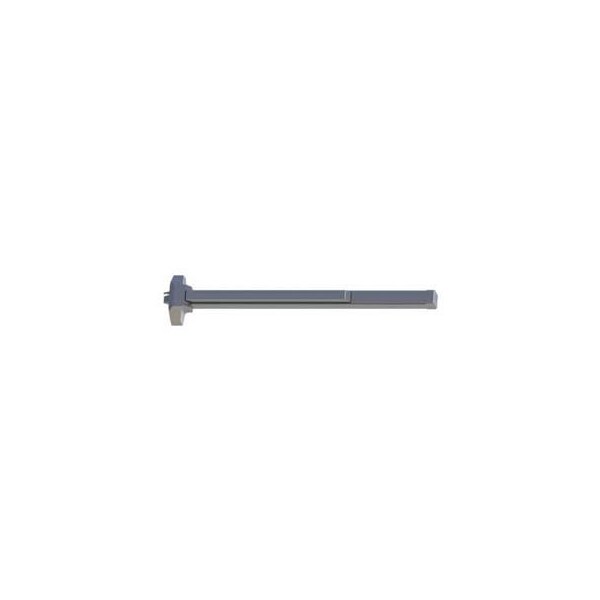

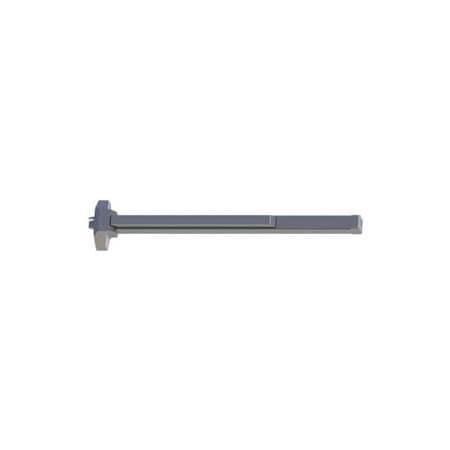

Hager 4700 Series Rim Exit Device - Fire Rated (Discontinued)

Hager 4700 series rim exit device applications: commercial, standard duty certifications: ul/cul listed for up to three hours for "a" label doors, ul10c/ubc 7-2 (1997) positive pressure rated, ulb10 neutral pressure rated, hex dogging feature standard on non-fire labeled doors, fire-rated devices for use with mullion available, warnock hersey listed up to 3 hours with fire related removable mullion, complies with an si a117.1 for accessible buildings and facilities door thickness: 1 3/4" stile width: 4 1/2" minimum stile width for single door applications, 4" minimum stile width required for double door applications, 5" minimum stile width required for double doors with 2" mullion fasteners: wood and machine screws, thru-bolts latchbolt: 3/4" throw, stainless steel with dead latch.
