This item is Discontinued.

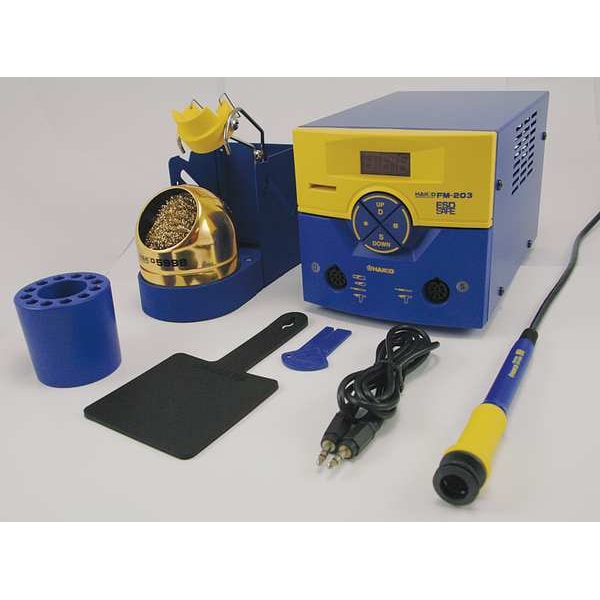

Hakko Dual Port Soldering System w/Heavy Duty Handpiece FM203-HD

Dual Port Soldering System w/Heavy Duty Handpiece (Discontinued)

  • Mfr # FM203-HD
  • Zoro # G8816613
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FM203-HD
Zoro #
G8816613
UPC #
-
Country of Origin
Japan

Dimensions

Overall Depth
7.5 in
Handpiece Cord Length
4.3 ft
Station Power Cord Length
4 ft
Overall Width
4.7 in
Overall Height
4.7 in

Details

Item
Soldering Station
Type
Digital
Voltage
120 V
Watts
140 W
Temp. Range (F)
400 Degrees to 930 Degrees
Temp. Accuracy (F)
Greater Than +/-27 Degrees
Includes
(2) Iron Holder, Connecting Cable, Control Card, Green Sleeve Assembly, Heat Resistant Pad, Power Cord, Soldering Iron, Tip Tray
Application
Desoldering, Soldering
Features
Auto Shutoff, No Calibration Necessary, Sleep Mode Functionality
Standards
ESD
Tip to Ground Resistance
2 ohm
Temperature Accuracy
+/-15 Degrees C
Power Unit Manufacturer Model Number
FM-203
Compatible Tip Series
T22
Handpiece
FM2030-01
Operating Temperature (Minimum)
400 Degrees F
Handpiece Style
Soldering Iron
Product Type
Complete Station
Handpiece Connection Type
Station Connector
Operating Temperature (Maximum)
840 Degrees F
Compatible Handpiece Manufacturer Model Number
FM-2022, FM-2023, FM-2024, FM-2026, FM-2027, FM-2030, FM-2031, FM-2032
Number of Channels
2
Handpiece Power Consumption
140 W
Temperature Stability
+/-5 Degrees C
ESD Safe
Yes
Station Power Consumption
140 W
Series
FM-203
Temperature Adjustment
Adjustable Temperature Setting
Tip to Ground Potential
2 mV
Number of Tips Included
0
Tip Type
Not Included
Plug Type
Three Prong
Operating Voltage
120V
Display Type
Digital

Description

Soldering Station, ESD Safe Yes, Handpiece Style Soldering Iron, Number of Channels 2, Station Power Consumption 140 W, Tip Type Not Included, Operating Temperature (Minimum) 400 Degrees F, Operating Temperature (Maximum) 840 Degrees F, Handpiece FM2030-01, Product Type Soldering & Desoldering Station, Series FM-203, Application Desoldering, Soldering, Compatible Handpiece Manufacturer Model Number FM-2022, FM-2023, FM-2024, FM-2026, FM-2027, FM-2030, FM-2031, FM-2032, Compatible Tip Series T22
