  5. On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 19 9/16 in H, 18 1/4 in W

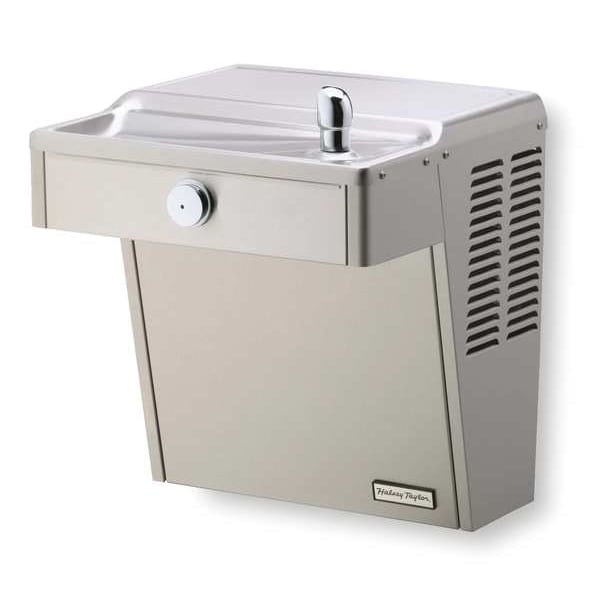

Halsey Taylor On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 19 9/16 in H, 18 1/4 in W 8250080083 - main

On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 19 9/16 in H, 18 1/4 in W

  • Mfr # 8250080083

  • Zoro # G3236694

product price:  $1,091.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8250080083
Zoro #
G3236694
UPC #
094902395685
Country of Origin
United States

Dimensions

Width
18 1/4 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Depth
18 5/8 in
Height
19 9/16 in
Overall Width
20 3/8 in
Overall Height
26 3/8 in
Inlet Tube Outside Diameter
1/4 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Drain Outside Diameter
1 1/4 in
Overall Depth
20 1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Front Push Button
Item
Single Drinking Fountain
Dispenser Design
Wall
Cold Water Capacity
8 gph
Water Temp.
50 Degrees F
Drain Connection
1 1/4 in
Vandal Resistant
Yes
Standards
ADA and ICC A117.1, ASME A112.19.3/ CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Dispenser Operation
Front Push Button
Inlet
3/8 in OD
Refrigerated / Non-Refrigerated
Refrigerated
Regulator
In-line Flow, Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Features
Hermetically Sealed Refrigeration System, Tamper-Resistant Fasteners
Operating Voltage
115V AC
Number of Bubblers
1
Fountain Actuation
Front Push Button
Power Source
Electric Corded
Minimum Constant Stream Pressure
20 psi
Maximum Cold Water Temperature
50 Degrees F
Includes Back Panel
No
Housing Material
Stainless Steel
Vandal Resistant Features
Vandal Resistant
Antimicrobial
No
Compressor Horsepower
1/5 hp
Power Consumption
370 W
Includes Water Filter
No
Includes Pet Bowl
No
Minimum Supply Line Pressure
20 psi
Bi-Level Field Adjustable
No
Number of Mounting Holes
3
Refrigerant Type
R134A
Refrigeration
Refrigerated
Housing Color
Silver
Temperature Adjustment
Factory Set but Adjustable
Housing Finish
Plain
Cooling Capacity
8 gph @ 50 Degrees F
Environment
Indoor, Outdoor
Station Type
Single Fountain
Maximum Constant Stream Pressure
105 psi
Full Load Current
4.5 A
Basin Material
Stainless Steel
Bubbler Finish
Chrome Plated

Description

Drinking Fountain, Station Type Single Fountain, Fountain Actuation Front Push Button, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Plain, Overall Height 26 5/16 in, Overall Depth 20 3/16 in, Overall Width 20 3/8 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Not Bi-Level Field Adjustable, Includes Pet Bowl Pet Bowl Not Included

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
