Shop HAM-LET

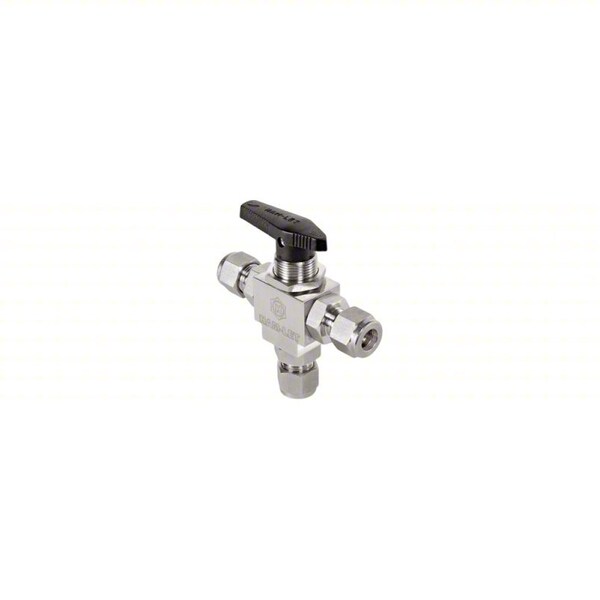

High Performance Ball Valve, 3.4", PTFE

  • Mfr # H6800SSL3/8IPST

  • Zoro # G716127685

product price:
$
296.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Stainless Steel
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Three-Piece
Pipe Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H6800SSL3/8IPST
Zoro #
G716127685
UPC #
-
Country of Origin
Israel
Ball Material
Stainless Steel
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Three-Piece
For Media
Air, Chemicals, Gases, Water
Connection Type
Compression
Item
High Performance Ball Valve
Handle Type
Lever
Standards
ISO 15848-1:2006(E)
Stem Type
Blowout Resistant
Body Material
316 Stainless Steel
Stem Material
316 Stainless Steel
Seat Material
PTFE
Max. Pressure
6 bar
Seal Material
MPTFE
Handle Material
Plastic
Operating Temperature - Maximum
194 Degrees F
Handle - Locking
Locking
Coefficient of Volume (Cv)
4.8
Outlet Connection Type - Side 1
Compression
Operating Temperature - Minimum
-25.6 Degrees F
Color - Valve Handle
Black
Outlet Connection Type - Side 2
Compression
Valve Series
H6800
Maximum Pressure - Steam
Not Rated
Cleaned and Bagged
Not Cleaned and Bagged
3-A Standard Compliance
Not Rated
Flow Pattern
T Flow
Maximum Pressure - Combustible Gas
Not Rated
Vented Ball Valve
Non-Vented
Inlet Connection Entry
Bottom
Inlet Connection Type
Compression
Valve Construction
Three-Piece
Manufacturer Warranty
1 yr
Maximum Pressure - Operating
6 bar

Description

High Performance Ball Valve, Body Material 316 Stainless Steel, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern T Flow, 3-A Standard Compliance Not Rated, Ball Port Style Standard Port, Nominal Valve Size 3/8 in, Inlet Connection Size 3/8 in, Inlet Connection Gender Not Applicable, Inlet Connection Type Compression, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 3/8 in
