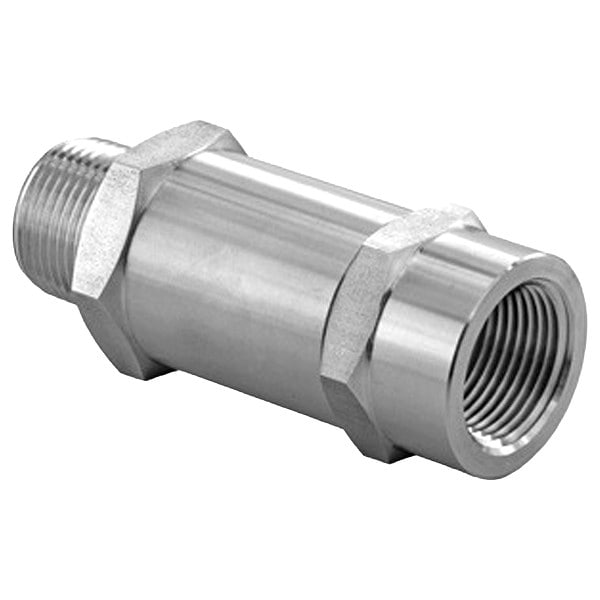

Instrumentation Check Valve

  • Mfr # H-415-SS-N-1/4-1PSI

  • Zoro # G608258817

product price:
$
75.55
/ea

Key Features

Hex Size
5/8 in
Connection Type
FNPT x MNPT
Body Material
316 Stainless Steel
Seal Material
FKM
Cracking Pressure
1 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H-415-SS-N-1/4-1PSI
Zoro #
G608258817
UPC #
-
Country of Origin
Israel

Dimensions

Hex Size
5/8 in
Length
2.38 in
Overall Length
2.38 in
Pipe or Tube Size
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 2
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
2.38 in

Details

Connection Type
FNPT x MNPT
Body Material
316 Stainless Steel
Seal Material
FKM
Cracking Pressure
1 psi
Item - Check Valves
Instrumentation Check Valve
Seat Material
316 Stainless Steel
Standards
C.R.N 0C16552.2
Spring Material
302 Stainless Steel
Item
Instrumentation Check Valve
Mechanism and Body Design
Inline Spring
Body Material - Valves
Stainless Steel
Min. Temp. - Valves
-10 Degrees F
Max. Steam Pressure - Valves
3,000 psi @ -10 Degrees F to 100 Degrees F
Max. Temp. - Valves
375 Degrees F
Maximum Pressure - Steam
Not Rated
Valve Ways
2-Way
Connection Type - Side 2
NPT
Valve Body Style
Inline
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Check Mechanism
Poppet
Coefficient of Volume (Cv)
0.47
Operating Temperature - Minimum
-10 Degrees F
Maximum Pressure - Operating
3,000 psi
For Media
Chemicals, Gas, Oil, Water
3-A Standard Compliance
Not Rated
Check Mechanism Material
316 Stainless Steel
Includes Counterweight
No Counterweight
Operating Temperature - Maximum
375 Degrees F
Silent Check
Standard
Connection Gender - Side 2
Male
Mounting Orientation
Horizontal, Vertical
Vacuum Service Rating
Not Rated
Valve Series
H400

Description

The HAM-LET H-415-SS-N-1/4-1PSI is an instrumentation check valve configured for one-way flow in small-bore instrument and process control lines. Intended to restrict reverse flow in instrument and process control lines with gauges, analyzers, and other system components. This inline, 2-way valve features a poppet check mechanism for use with compatible chemicals, gas, oil, and water based on valve materials and application requirements.

Key Features:

  • Connection type: FNPT x MNPT with 1/4 in NPT connections
  • Connection gender: side 1 female; side 2 male
  • Body material: 316 stainless steel
  • Check mechanism material: 316 stainless steel with 316 stainless steel seat
  • Seal material: FKM
  • Spring material: 302 stainless steel
  • Check mechanism: poppet
  • Mechanism and body design: inline spring; inline valve body
  • Cracking pressure: 1 psi
  • Coefficient of volume (Cv): 0.47
  • Maximum operating pressure: 3,000 psi
  • Operating temperature range: -10 degrees F to 375 degrees F
  • Mounting orientation: horizontal or vertical
  • Overall length: 2.38 in
  • Hex size: 5/8 in
  • Valve series: H400
  • Standards: C.R.N 0C16552.2
