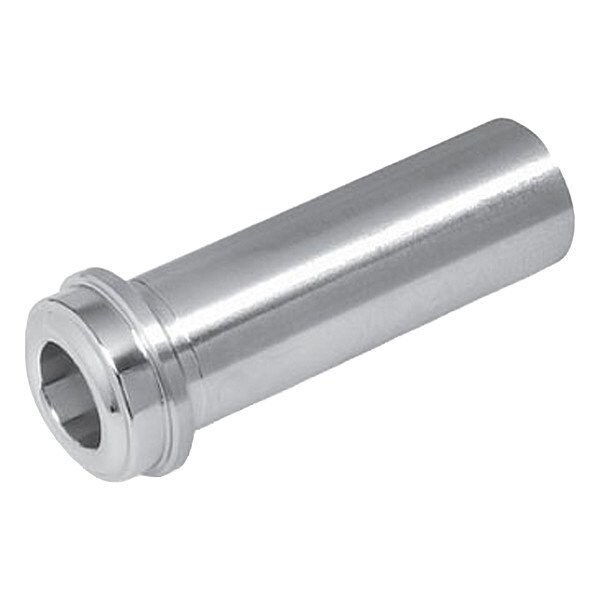

LongGland, Gskt3/8in, ButtWeld3/8in

Mfr # VHGL3/8WE(1.13)
Zoro # G616136589

35.85

Key Features

Finish

Electropolish

Standards

E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305

Fitting Material

Stainless Steel

For Media Type

High Purity Gases

Fitting Side 1 Tube Outer Diameter

3/8 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VHGL3/8WE(1.13)
Zoro #: G616136589
UPC #: -
Country of Origin: India

Dimensions

Fitting Side 1 Tube Outer Diameter: 3/8 in
Overall Length: 1 1/8 in
Fitting Thickness: 0.035 mm
Fitting Side 2 Tube Outer Diameter: 3/8 in
Wire Rope Length: 1 1/8 in
Length: 1 1/8 in

Details

Item: Compression High Purity Fitting
Finish: Electropolish
Standards: E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
Fitting Material: Stainless Steel
For Media Type: High Purity Gases
Precleaned Type: Ultra High Purity Clean and Double Bagged
Material Grade: 316L
Fitting Features: Rigid
Fitting Side 2 Connection Type: Butt Weld
Application: Vacuum, Pharmaceutical
Compatible Fitting Brands: Parker VFS, Swagelok
Connector Type: Adapter
Vacuum Rating: 10^(¿11) Torr @ 72 Degrees F
Fitting Shape: Long Gland without Shoulder
Operating Temperature - Minimum: -45 Degrees F
Operating Temperature - Maximum: 1,000 Degrees F
System of Measurement: Imperial
Operating Pressure - Maximum: 231 bar
Series: HGL
Fitting Side 1 Connection Type: Gasket

Description

Compression High Purity Fitting, Application Vacuum, Pharmaceutical, Fitting Material Stainless Steel, Material Grade 316L, Overall Length 1 1/8 in, Compatible Fitting Brands Parker VFS, Swagelok, Series HGL, System of Measurement Imperial, Standards E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
