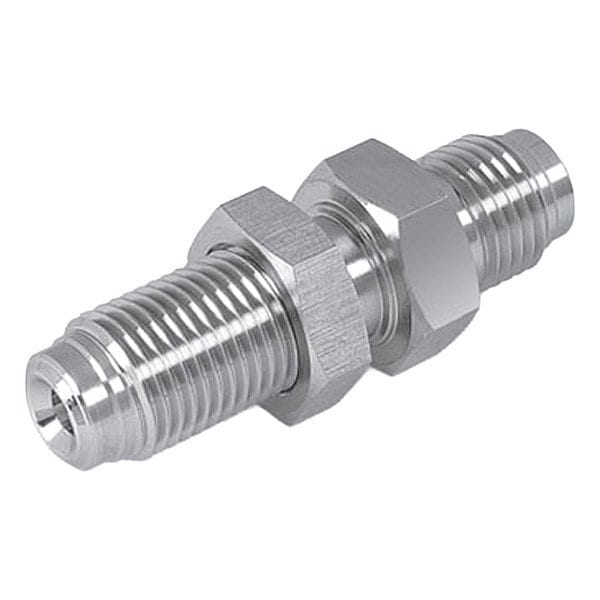

Strt, SS, Gasket 1/2 in, Gasket 1/4 in
- Mfr # PBU1/2E
- Zoro # G716136021
product price:Â
$
113.99
/ea
Free Shipping & Returns
Key Features
Standards
E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
Finish
Electropolish
Overall Length
2 9/16 in
Vacuum Rating
10^(¿11) Torr @ 72 Degrees F
Precleaned Type
High Purity Clean and Double Bagged
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PBU1/2E
- Zoro #
- G716136021
- UPC #
- -
- Country of Origin
- India
- Item
- Compression Fitting Union
- Standards
- E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
- Finish
- Electropolish
- Vacuum Rating
- 10^(¿11) Torr @ 72 Degrees F
- Precleaned Type
- High Purity Clean and Double Bagged
- Operating Pressure - Maximum
- 259 bar
- Fitting Shape
- Straight
- Fitting Side 1 Connection Type
- Gasket
- Compatible Fitting Brands
- Parker VFS, Swagelok
- For Media Type
- High Purity Gases
- Material Grade
- 316L
- Fitting Side 2 Connection Type
- Gasket
- Operating Temperature - Maximum
- 1,000 Degrees F
- Application
- Vacuum, Pharmaceutical
- Connector Type
- Union
- Series
- BU
- Fitting Features
- Rigid
- Fitting Material
- Stainless Steel
- System of Measurement
- Imperial
- Operating Temperature - Minimum
- -45 Degrees F
Dimensions
- Overall Length
- 2 9/16 in
- Fitting Side 2 Tube Outer Diameter
- 1/2 in
- Fitting Side 1 Tube Outer Diameter
- 1/2 in
- Fitting Thickness
- 0.049 mm
- Wire Rope Length
- 2 9/16 in
- Length
- 2 9/16 in
Description
Compression Fitting Union, Application Vacuum, Pharmaceutical, Fitting Material Stainless Steel, Material Grade 316L, Overall Length 2 9/16 in, Compatible Fitting Brands Parker VFS, Swagelok, Series BU, System of Measurement Imperial, Standards E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
