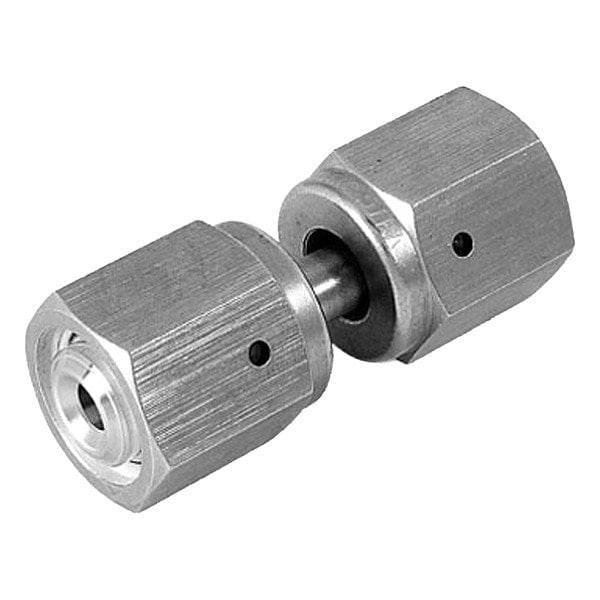

Strt, SS, Gasket 1/2 in, Gasket 1/4 in
Mfr # PUFF1/2X1/2E
Zoro # G016136707
product price: $203.99
/ea
Free Shipping & Returns
Key Features
Finish
Electropolish
Standards
E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
Fitting Shape
Straight
Connector Type
Union
System of Measurement
Imperial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PUFF1/2X1/2E
Zoro #
G016136707
UPC #
-
Country of Origin
India
Dimensions
Overall Length
1 23/32 in
Fitting Thickness
0.049 mm
Fitting Side 1 Tube Outer Diameter
1/2 in
Fitting Side 2 Tube Outer Diameter
1/2 in
Details
Finish
Electropolish
Standards
E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
Item
Compression Fitting Union
Fitting Shape
Straight
Connector Type
Union
System of Measurement
Imperial
Operating Pressure - Maximum
259 bar
Fitting Material
Stainless Steel
Material Grade
316L
Series
UFF
Compatible Fitting Brands
Parker VFS, Swagelok
Fitting Side 1 Connection Type
Gasket
Vacuum Rating
10^(¿11) Torr @ 72 Degrees F
Fitting Side 2 Connection Type
Gasket
Operating Temperature - Minimum
-45 Degrees F
Fitting Features
Swivel
For Media Type
High Purity Gases
Precleaned Type
High Purity Clean and Double Bagged
Application
Vacuum, Pharmaceutical
Operating Temperature - Maximum
1,000 Degrees F
Description
Compression Fitting Union, Application Vacuum, Pharmaceutical, Fitting Material Stainless Steel, Material Grade 316L, Overall Length 1 23/32 in, Compatible Fitting Brands Parker VFS, Swagelok, Series UFF, System of Measurement Imperial, Standards E49.9, SEMASPEC 91060573A-STD, SEMI F19, SEMI F20-0305
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
