  6. Champion Swivel Caster, 10" x 3" Ergo-Glide XT 1" thick Polyurethane (85A) on Cast Iron Wheel

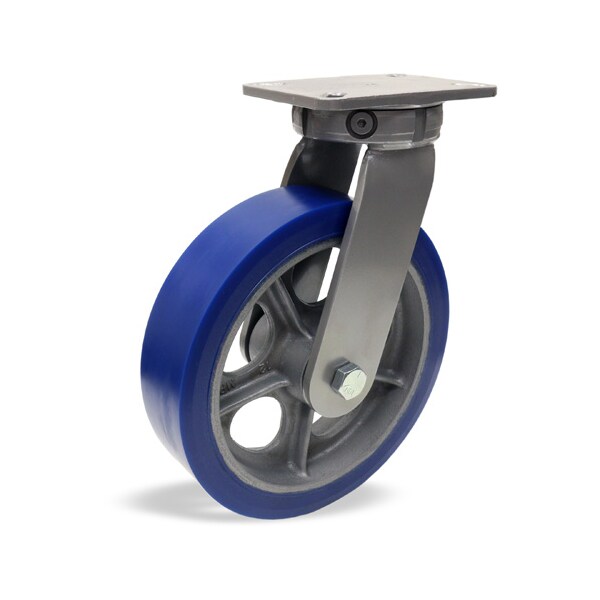

Hamilton Champion Swivel Caster, 10" x 3" Ergo-Glide XT 1" thick Polyurethane (85A) on Cast Iron Wheel S-CH-13EGB - main

Champion Swivel Caster, 10" x 3" Ergo-Glide XT 1" thick Polyurethane (85A) on Cast Iron Wheel

  • Mfr # S-CH-13EGB

  • Zoro # G1255587

product price:  $314.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
3
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Load Rating
3800
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S-CH-13EGB
Zoro #
G1255587
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3
Stem Dia.
No Stem
Overall Height
12-1/2in
Wheel Dia.
10
Mounting Bolt Dia.
0.5
Mounting Height
12.5
Mounting Plate Size
5 1/4 x 7 1/4

Details

Caster Sub-Type
Swivel
Item
Swivel Ch 10X3 Ergo-Glide Xt
Load Rating
3800
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Non-Marking
No
Replacement Wheel
W-1031-EGB-3/4
Outside Bolt Hole Spacing
4 1/8 x 6 1/8
Standards
ICWM
Inside Bolt Hole Spacing
3 3/8 x 5 1/4
Frame Finish
Powder Coat
Core Color
Gray
Number of Wheels
1
Caster Frame Material
Forged Steel
Thread Guards
No
Caster Plate Hole Pattern
A
Series
Champion
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel/Tread Color
Blue
Tread Shape
Standard
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Core Material
Cast iron
Load Rating Range
Heavy-Duty
Operating Temperature Range
-50 to 200 deg(F)

Description

Champion Swivel Caster, 10" x 3" Ergo-Glide XT 1" thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings
