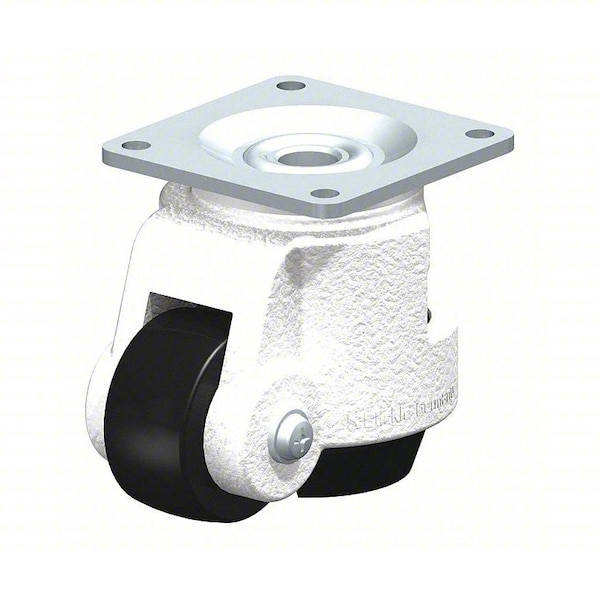

Leveling Caster, 550 lb. Load, Black Wheel

  • Mfr # HRP-POA 50G
  • Zoro # G7688100
product price:
$
74.55
/ea

Key Features

Caster Mounting Type
Plate
Caster Thread Size
M8
Foot/Pad Material
Rubber
Wheel Core Material
Nylon
Includes Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HRP-POA 50G
Zoro #
G7688100
UPC #
-
Country of Origin
Germany

Dimensions

Caster Thread Size
M8
Stem Dia.
No Stem
Mounting Height
3 5/16 in
Mounting Plate Size
2-7/8 in x 2-7/8 in
Maximum Leveling Height
3 9/16 in
Wheel Dia.
2 in
Overall Height
3-5/16"
Mounting Bolt Dia.
7/32 in
Wheel Width
7/8 in
Overall Wheel Width
7/8 in
Mounting Plate Thickness
1/8 in
Mounting Plate Length
2 7/8 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Length
2.313 in
Bolt Hole Spacing - Width
2.313 in

Details

Caster Mounting Type
Plate
Foot/Pad Material
Rubber
Wheel Core Material
Nylon
Includes Thread Guards
No
Item
Plate Caster
Frame Finish
Powder Coated
Caster Sub-Type
Swivel
Features
Push/Pull Force Reduction
Caster Temp. Range Available
Yes
Adjustment Style
Thumbwheel
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Caster Brake Type
Leveling Pad
Non-Marking
Yes
Outside Bolt Hole Spacing
2-9/32 in x 2-9/32 in
Caster Brake Included
No
Number of Mounting Holes
4
Wheel Color
Black
Number of Wheels
1
Swivel Construction
Kingpin
Caster Frame Material
Aluminum
System of Measurement
Inch
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-9/32 in x 2-9/32 in
Core Color
Black
Operating Position
Rear
Wheel/Tread Material
Nylon
Caster Plate Hole Pattern
D
Load Rating
550 lb
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Hard
Standards
DIN EN, ANSI ICWM, ISO 9001
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
550 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Square
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Load Rating 550 lb, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
