Shop HAMILTON

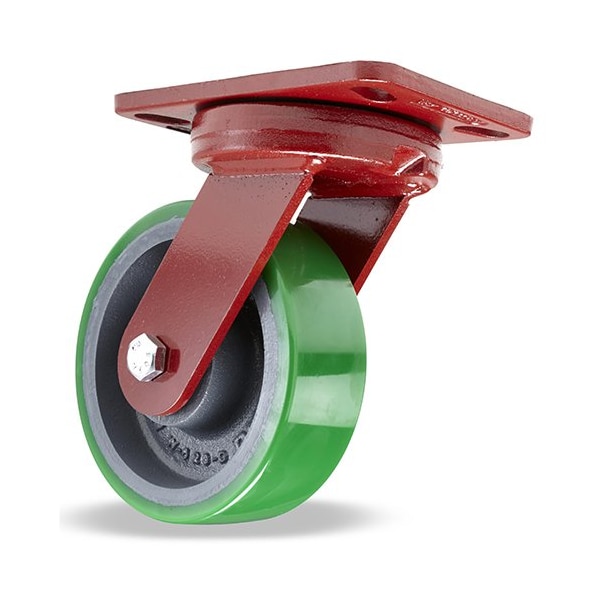

Plate Caster, Kingpinless Swivel, Ply, 6 in, 1200 lb, Gn

  • Mfr # S-ZFHS-6DB

  • Zoro # G0383568

product price:
$
233.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Load Rating
1200 lb
Non-Marking
Yes
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-ZFHS-6DB
Zoro #
G0383568
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-3/4"
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in

Details

Number of Wheels
1
Item
Plate Caster
Load Rating
1200 lb
Non-Marking
Yes
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Thread Guards
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Swivel
Replacement Wheel
4DU68
Caster Brake Included
No
Extended Lead
No
Wheel Color
Green
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Enamel
Caster Plate Hole Pattern
A
Core Color
Gray
Features
Sealed Swivel Bearing
Includes
Spanner Bushing
Caster Brake Type
No Brake
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel Core Material
Polyurethane
Swivel Construction
Kingpinless
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
1,200 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
