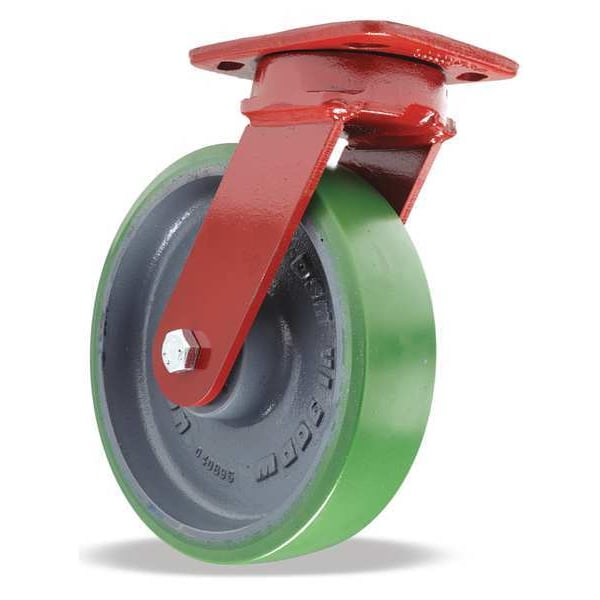

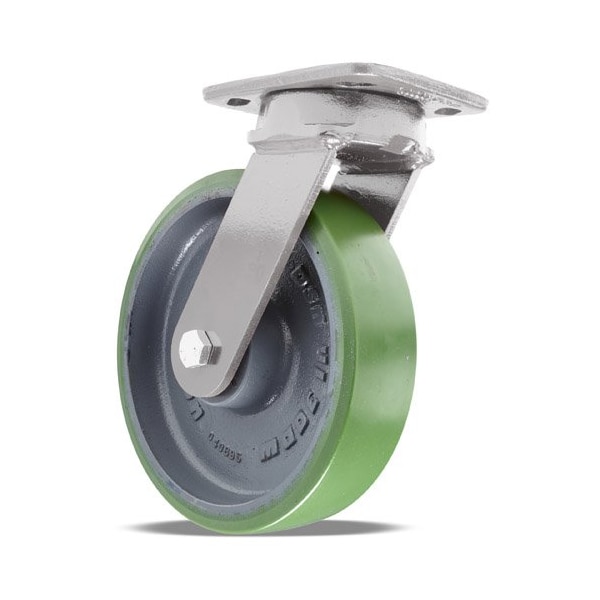

Plate Caster, Kingpinless Swivel, Ply, 8 in, 1500 lb, B

  • Mfr # S-ZFWH-8DB
  • Zoro # G0383470
product price:
$
237.99
/ea
Free Shipping & Returns

Key Features

Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Color
Green
Outside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
4DU70
Mounting Bolt Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-ZFWH-8DB
Zoro #
G0383470
UPC #
-
Country of Origin
United States
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Color
Green
Outside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
4DU70
Non-Marking
Yes
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Extended Lead
No
Frame Finish
Enamel
Caster Brake Included
No
Thread Guards
No
Load Rating
1500 lb
Standards
ANSI ICWM
Item
Plate Caster
Core Color
Gray
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Features
Sealed Swivel Bearing
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Spanner Bushing
Number of Wheels
1
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel Core Material
Polyurethane
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
1,500 lb
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Overall Height
9-1/2"
Wheel Width
2 in
Mounting Plate Size
4 in x 5 in
Mounting Height
9 1/2 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
5 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Fits Chest Size
Sealed Swivel Bearing

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
