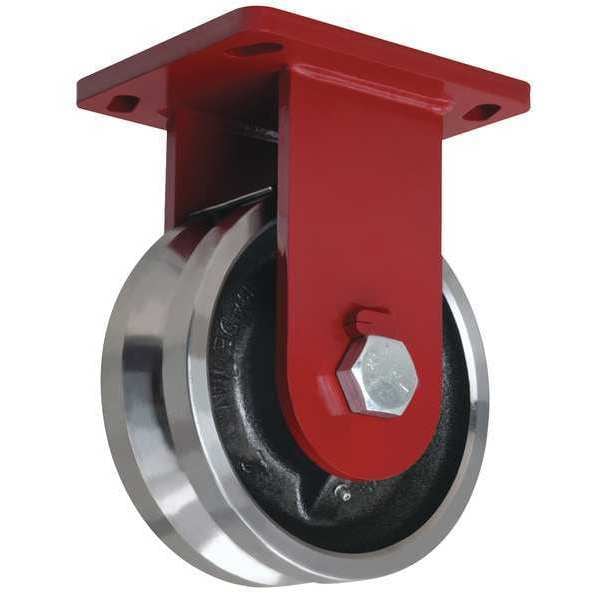

Plate Caster, Rigid, 8000 lb., 8" Dia.

  • Mfr # R-EPSD-84FVT

  • Zoro # G7426310

product price:  $640.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Caster Frame Material
Steel
Extended Lead
No
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-EPSD-84FVT
Zoro #
G7426310
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Width
4 in
Overall Height
10-1/2"
Wheel Dia.
8 in
Mounting Height
10 1/2 in
Recommended Track Size
2 in x 2 in
Mounting Plate Size
6-1/2 in x 7-1/2 in
Mounting Plate Length
7 1/2 in
For Axle Dia.
1 in
Inside Slot Spacing - Length
5.75 in
Mounting Plate Thickness
1/2 in
Inside Slot Spacing - Width
3.875 in
Overall Wheel Width
4 in
Outside Slot Spacing - Width
5.125 in
Mounting Plate Width
6 1/2 in
Outside Slot Spacing - Length
6.25 in

Details

Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Caster Frame Material
Steel
Extended Lead
No
Caster Brake Included
No
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Thread Guards
No
Item
Plate Caster
Wheel Color
Silver
Application
Commercial, General Purpose, Industrial, Institutional
Number of Wheels
1
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Enamel
Replacement Wheel
Mfr. No. W-840-FVT-1MC
Caster Brake Type
No Brake
Caster Sub-Type
Rigid
Non-Marking
Yes
Core Color
Silver
Features
Corrosion Resistant
Caster Temp. Range Available
Yes
Load Rating
10,000 lb
Wheel/Tread Hardness Rating
Extra Hard
Tread Shape
V-Groove
Wheel/Tread Material
Steel
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Includes Thread Guards
No
Number of Mounting Holes
4
Load Rating Range
6000 lb and Greater
Wheel Bearing Type
Roller
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
10,000 lb
Compatible With
W-840-FVT-1MC
For Surface Type
Concrete
Wheel Hardness Rating
170 BHN
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
350 Degrees F
Operating Temperature Range
-50 Degrees to 350 Degrees F

Description

Rigid, Plate Caster, Load Rating 10,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
