  11. Plate Caster, Rigid, Heavy-Duty, 3500 lb.

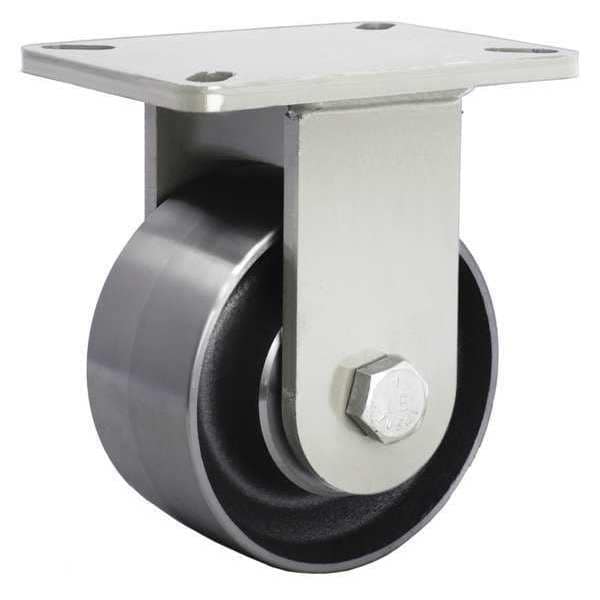

Hamilton Plate Caster, Rigid, Heavy-Duty, 3500 lb. R-SECJ-6FSH - main

Plate Caster, Rigid, Heavy-Duty, 3500 lb.

  • Mfr # R-SECJ-6FSH

  • Zoro # G7426100

product price: $136.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-SECJ-6FSH
Zoro #
G7426100
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
8in
Inside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 1/2 in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
3500 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Extended Lead
No
Caster Temp. Range Available
Yes
Includes
Spanner
Features
Corrosion Resistant
Wheel Color
Silver
Frame Finish
Zinc Plated
Caster Brake Included
No
Application
Commercial, General Purpose, Industrial, Institutional
Thread Guards
No
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. W-625-FSH-3/4MC
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Wheel Core Material
Steel
Swivel Lock Type
No Lock Included
Load Rating Range
3000 to 5999 lb
Swivel Construction
Kingpinless
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Compatible With
W-625-FSH-3/4MC
Load Capacity - Maximum
3,500 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature Range
-50 Degrees to 350 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
350 Degrees F

Description

Rigid, Plate Caster, Load Rating 3500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
